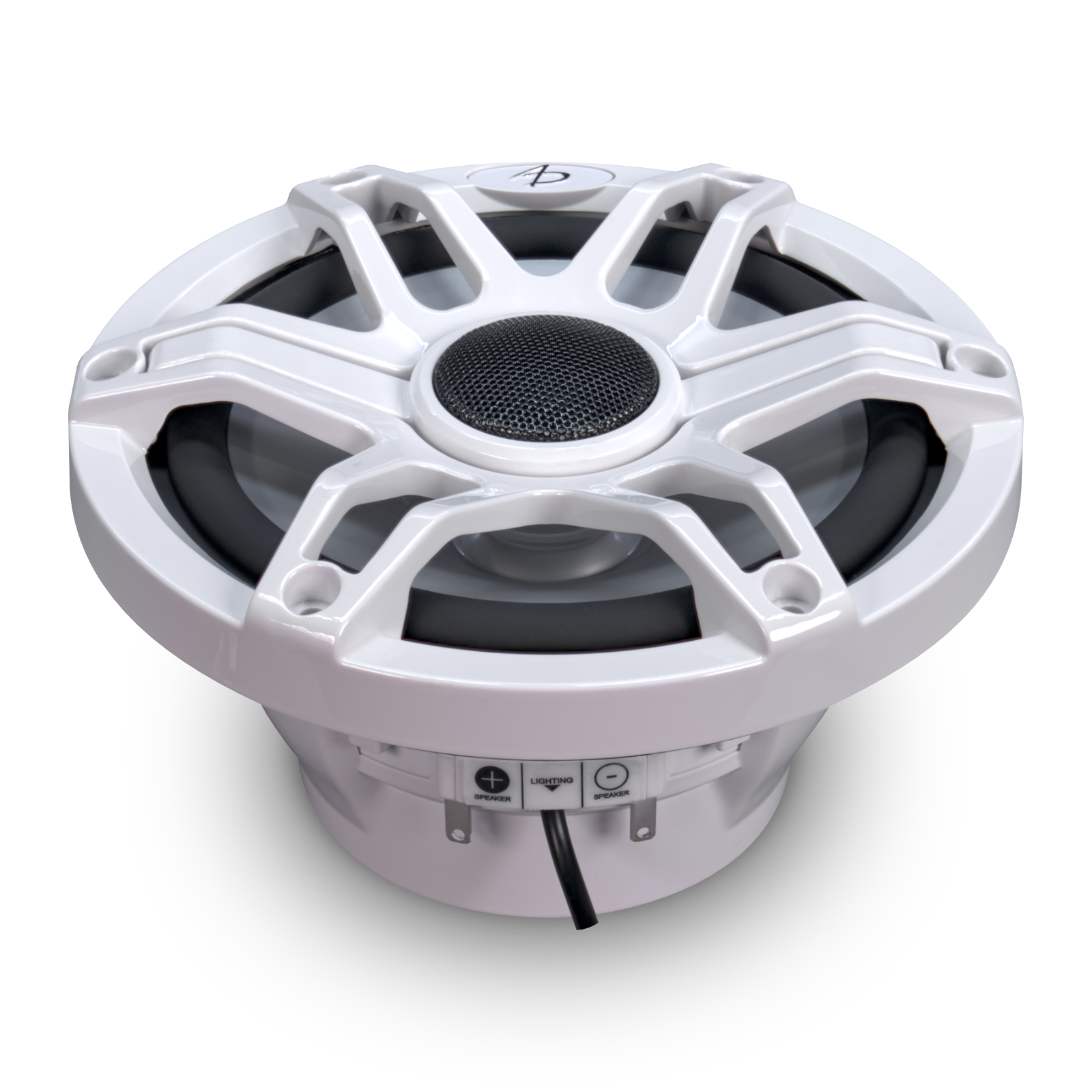

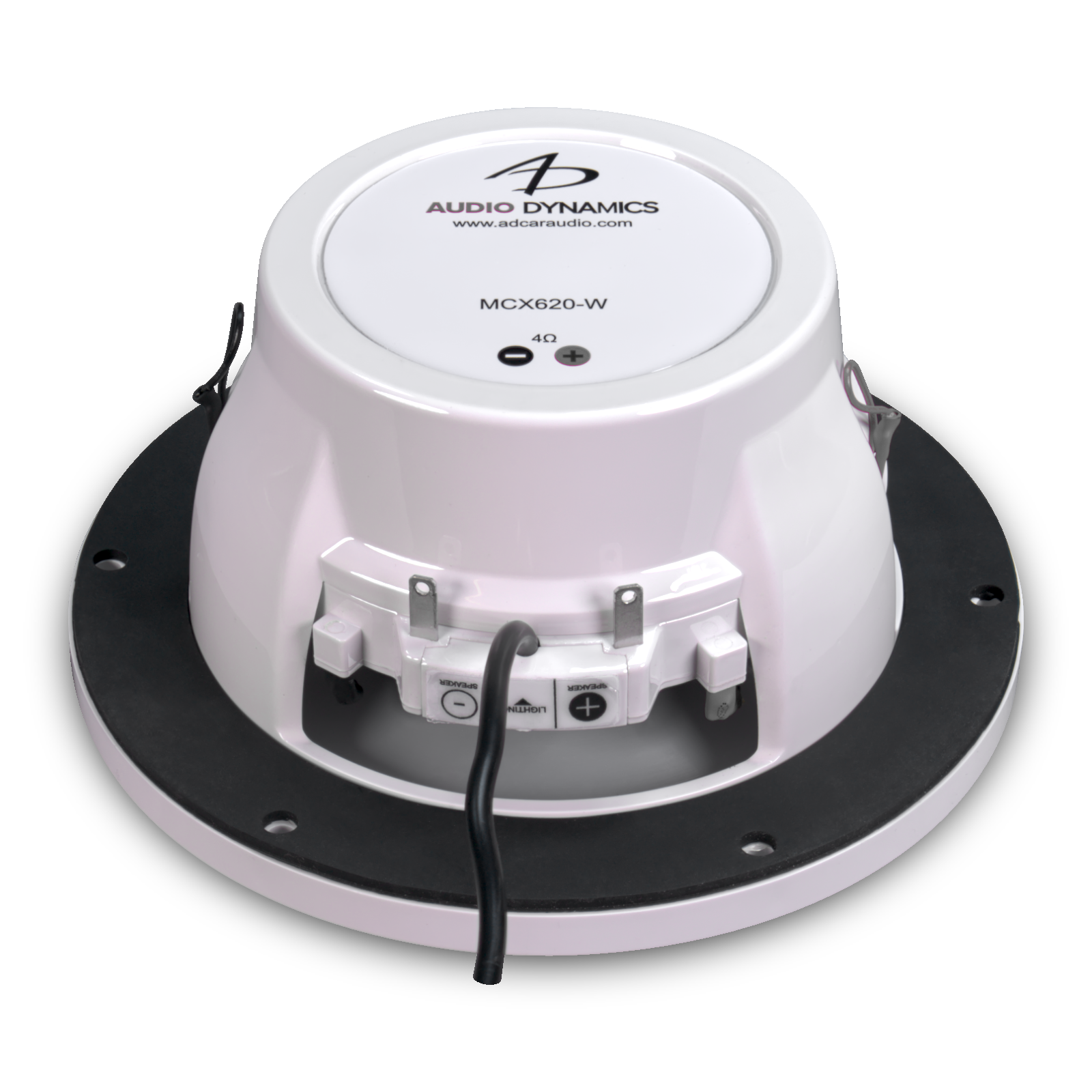

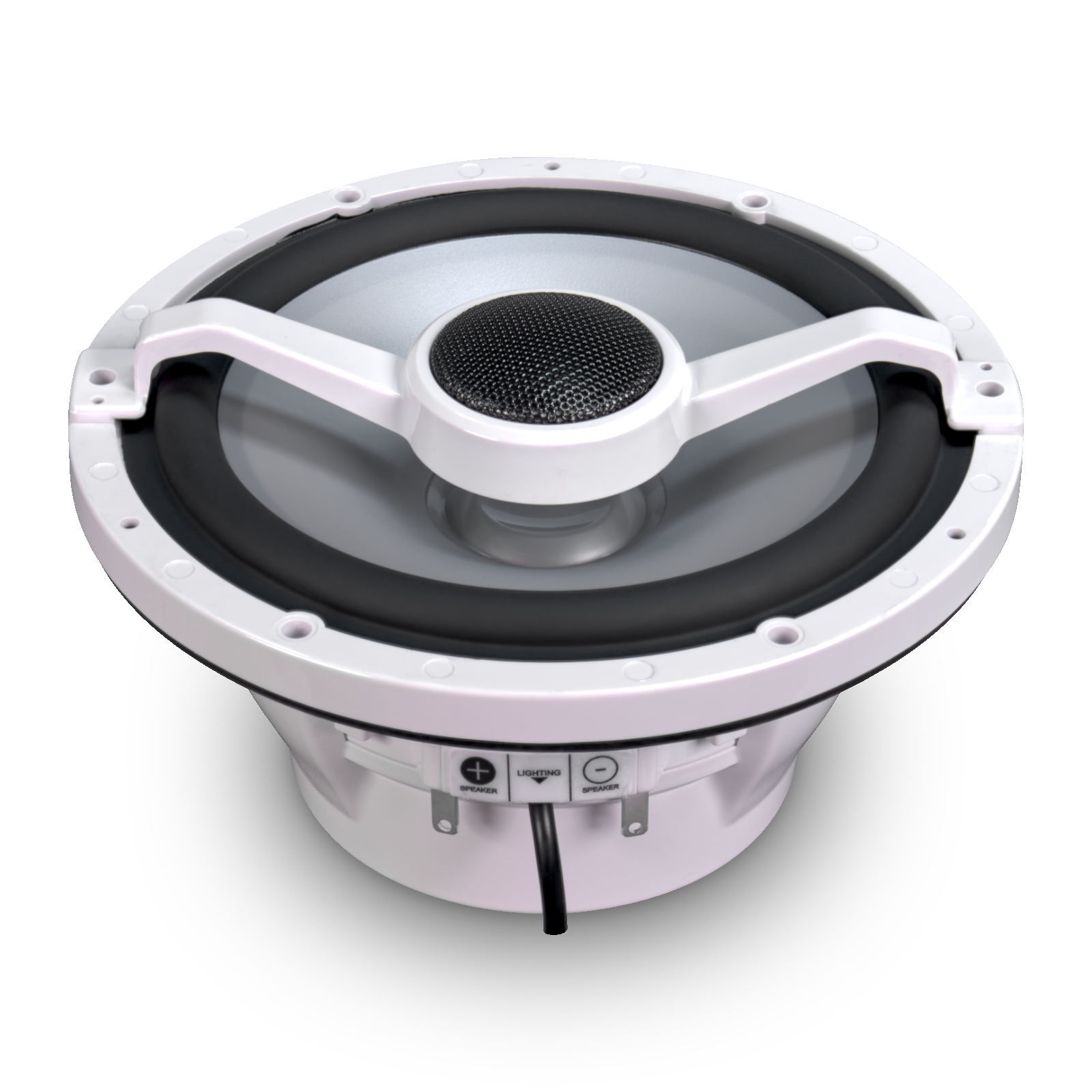

2000 Series 6.5" MCX620-W

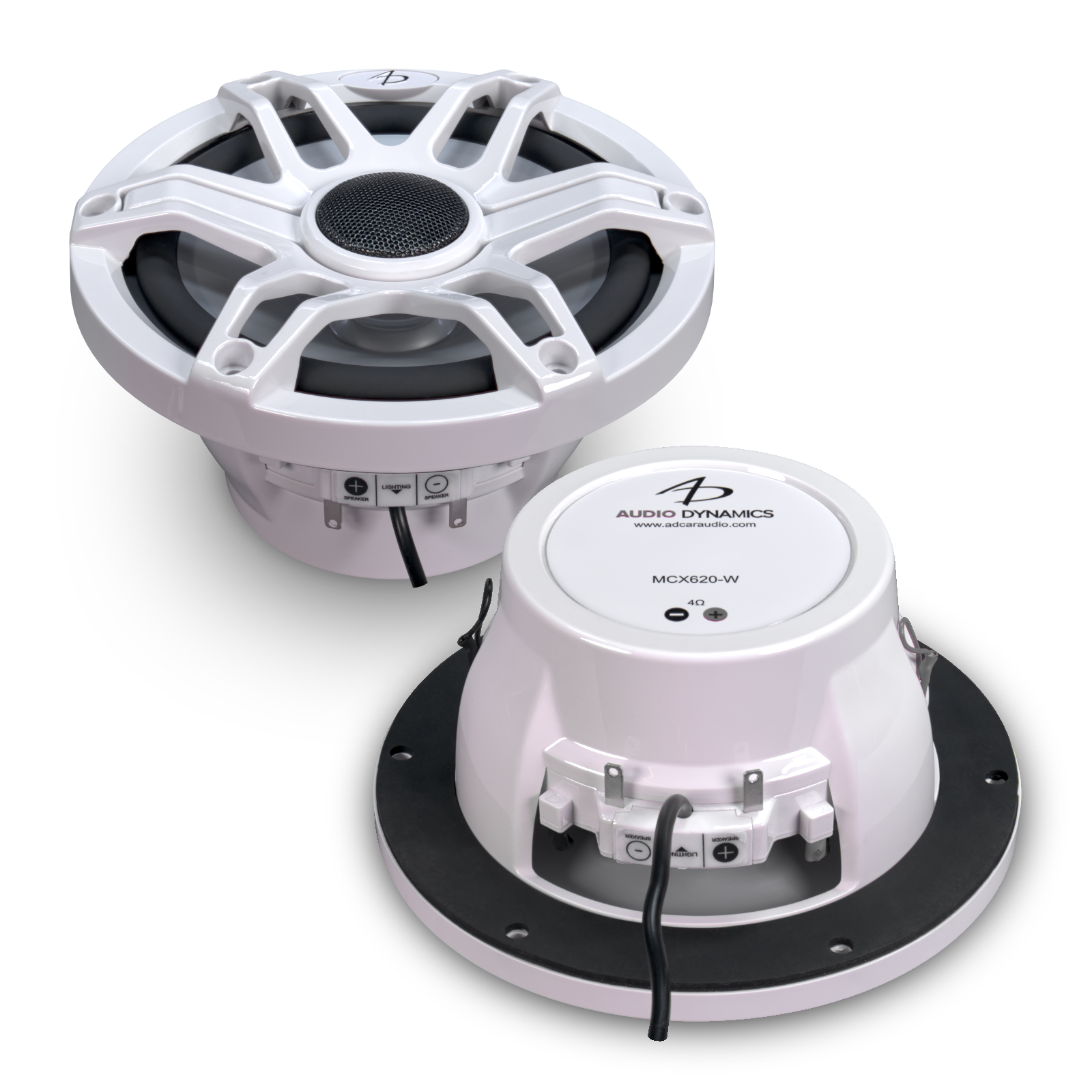

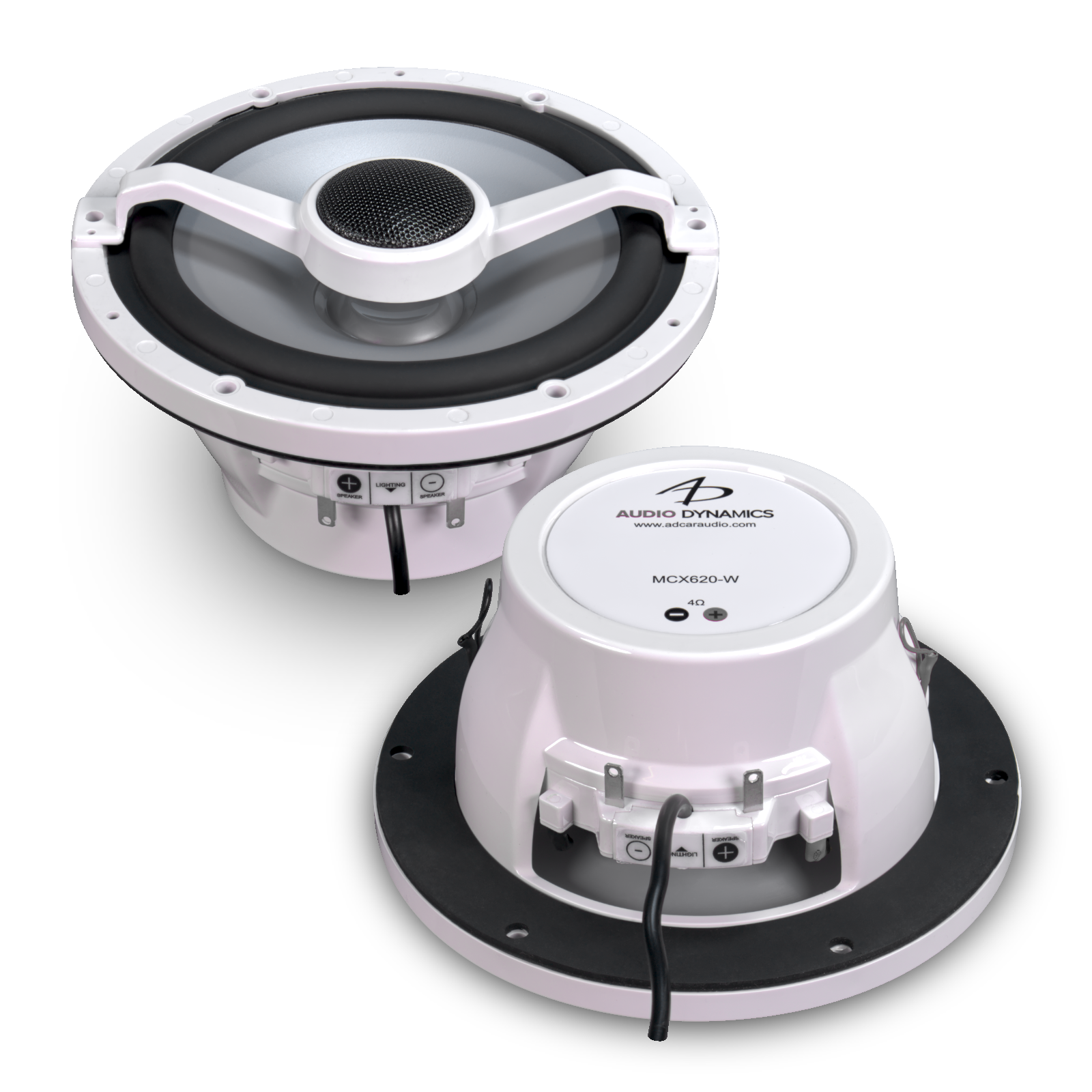

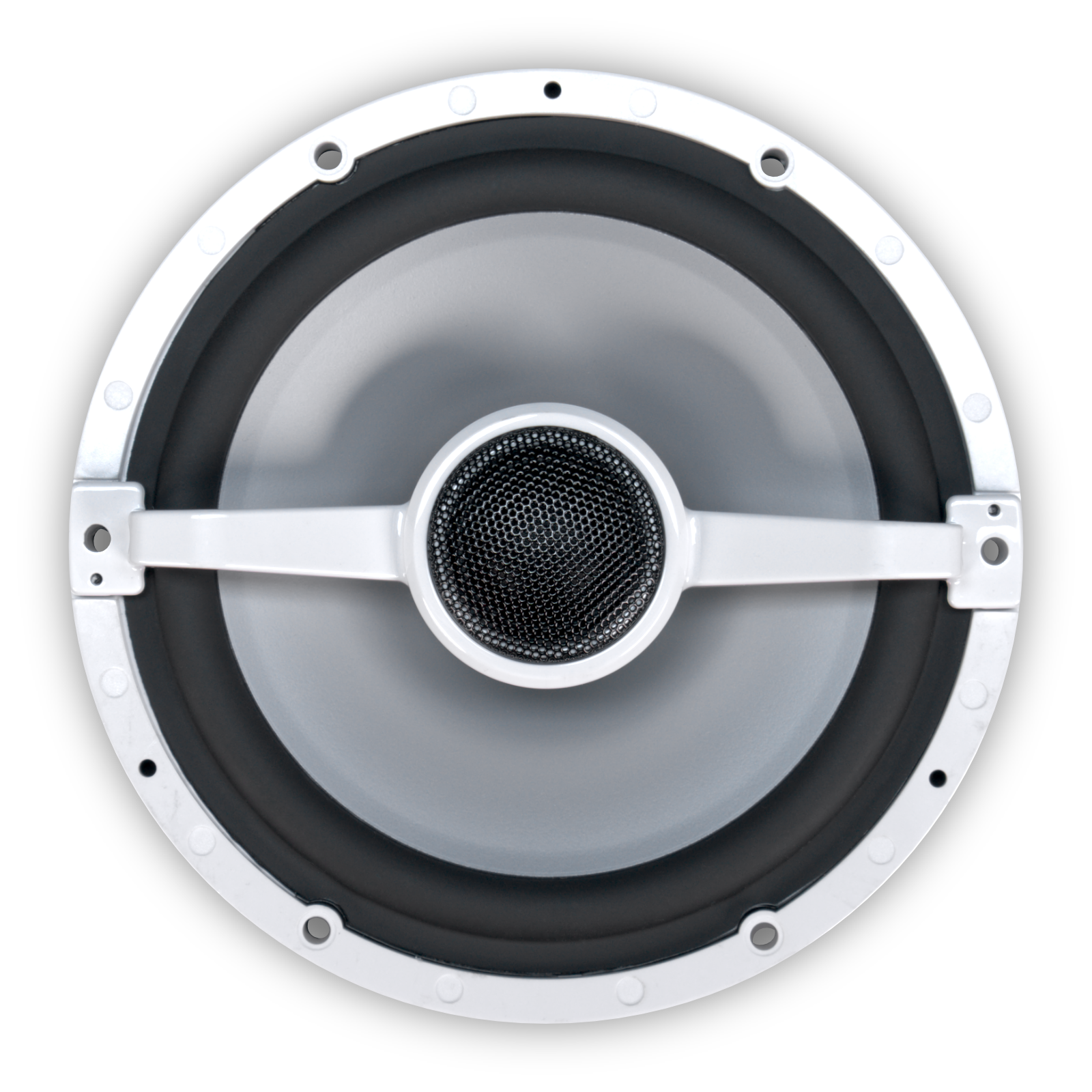

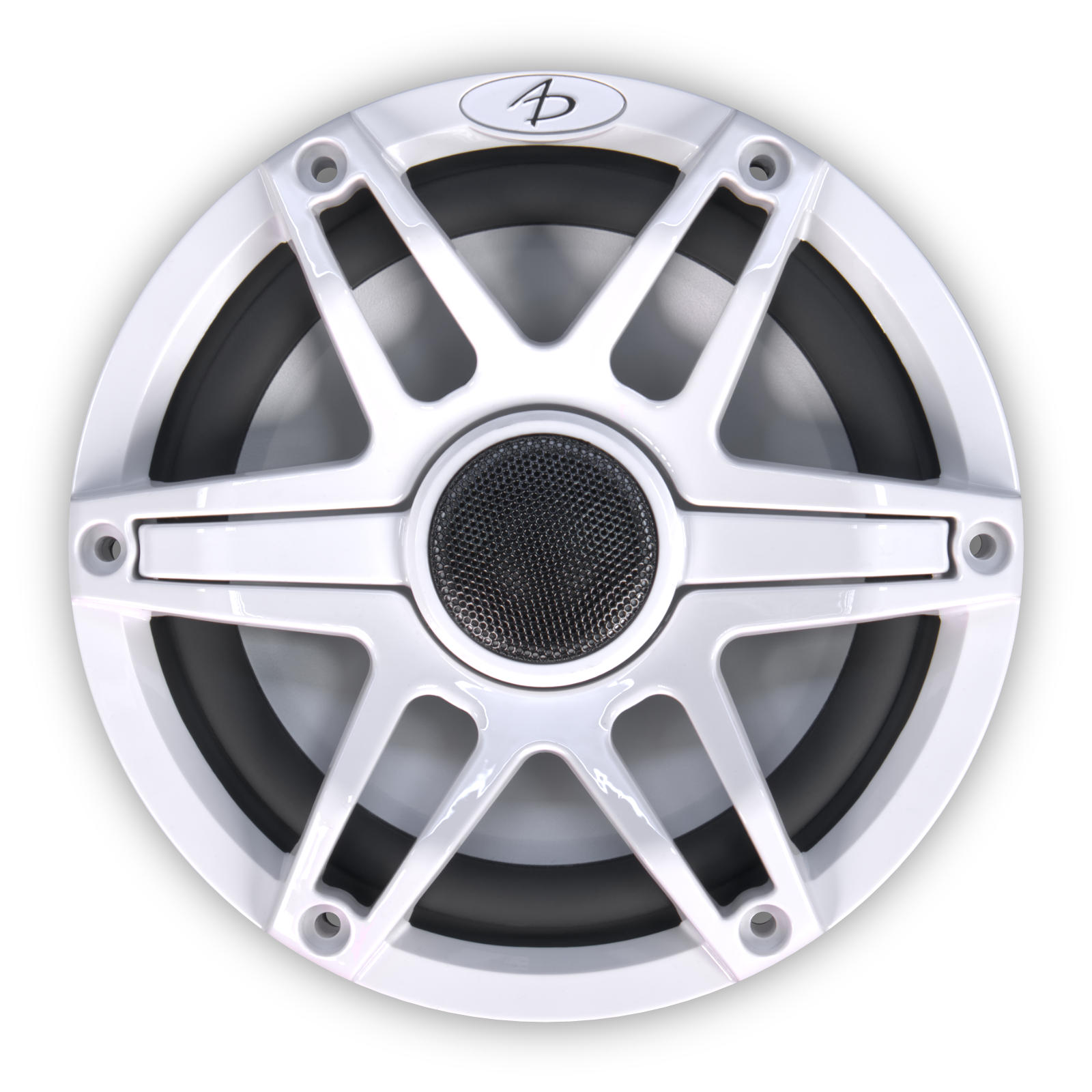

2000 Series 6.5″ MCX620-W

$399.00



  • 4 Ohm 6 ½” (165 mm) Marine Speaker
  • 1 3/16″ (30mm) Woofer Voice Coil
  • Composite Marine Grade Basket
  • Injection-Molded Polypropylene Cone
  • Marine Grade Rubber Surround
  • 1″ (25mm) Silk Dome Tweeter Treated to Withstand UV and Salt Exposure
  • Ferrofluid-Cooled Tweeter for Improved Damping, Response, and Power Handling

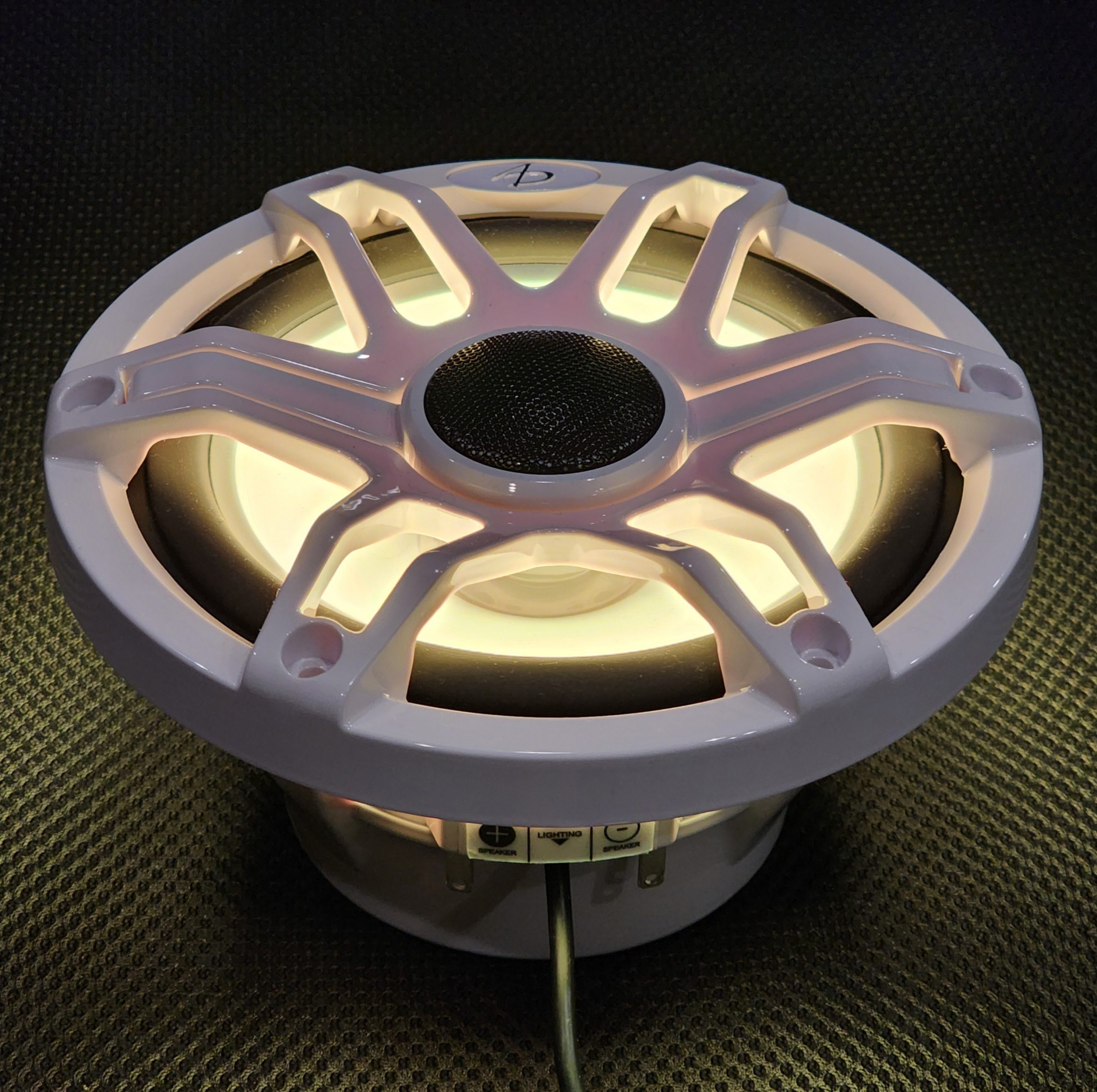

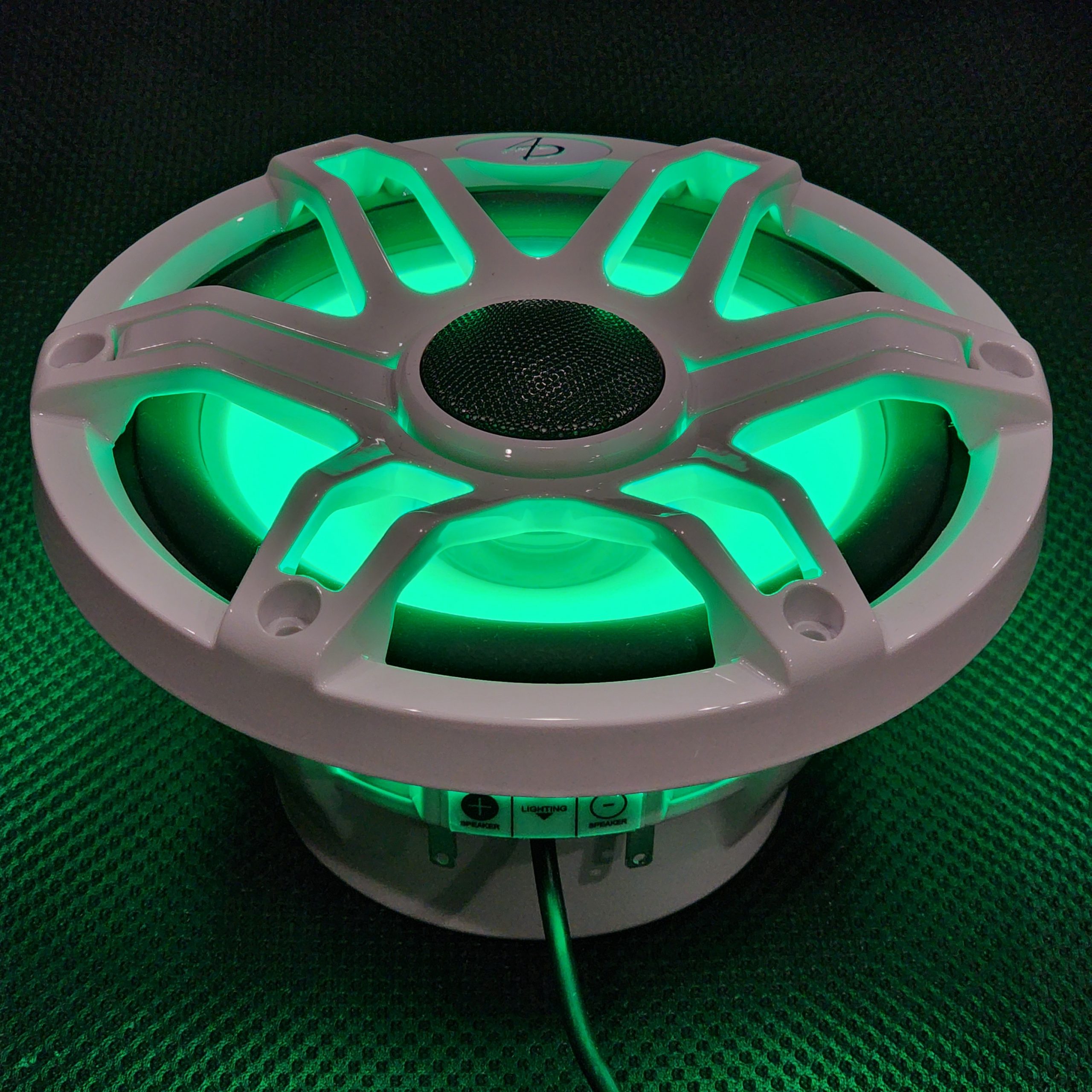

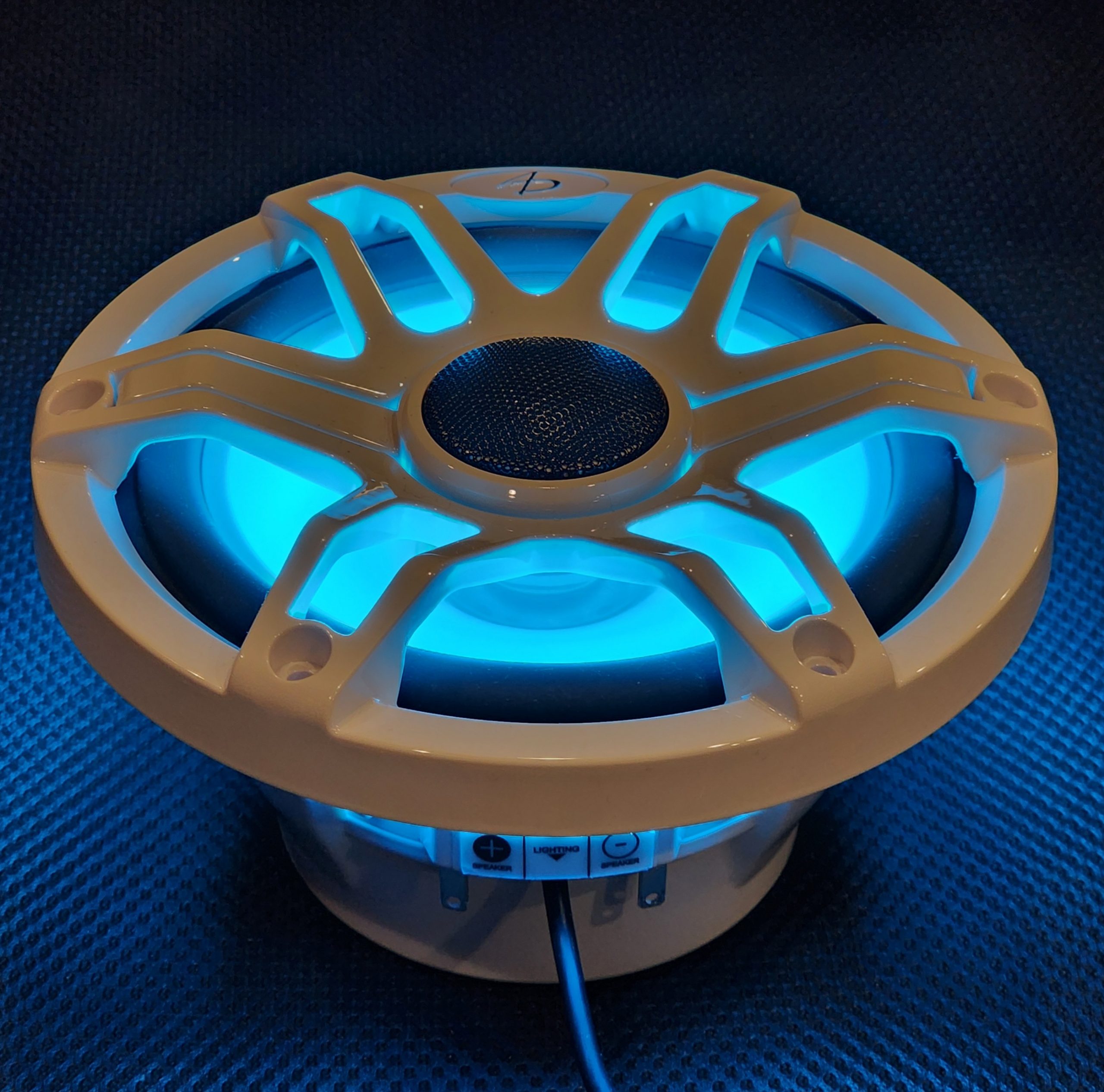

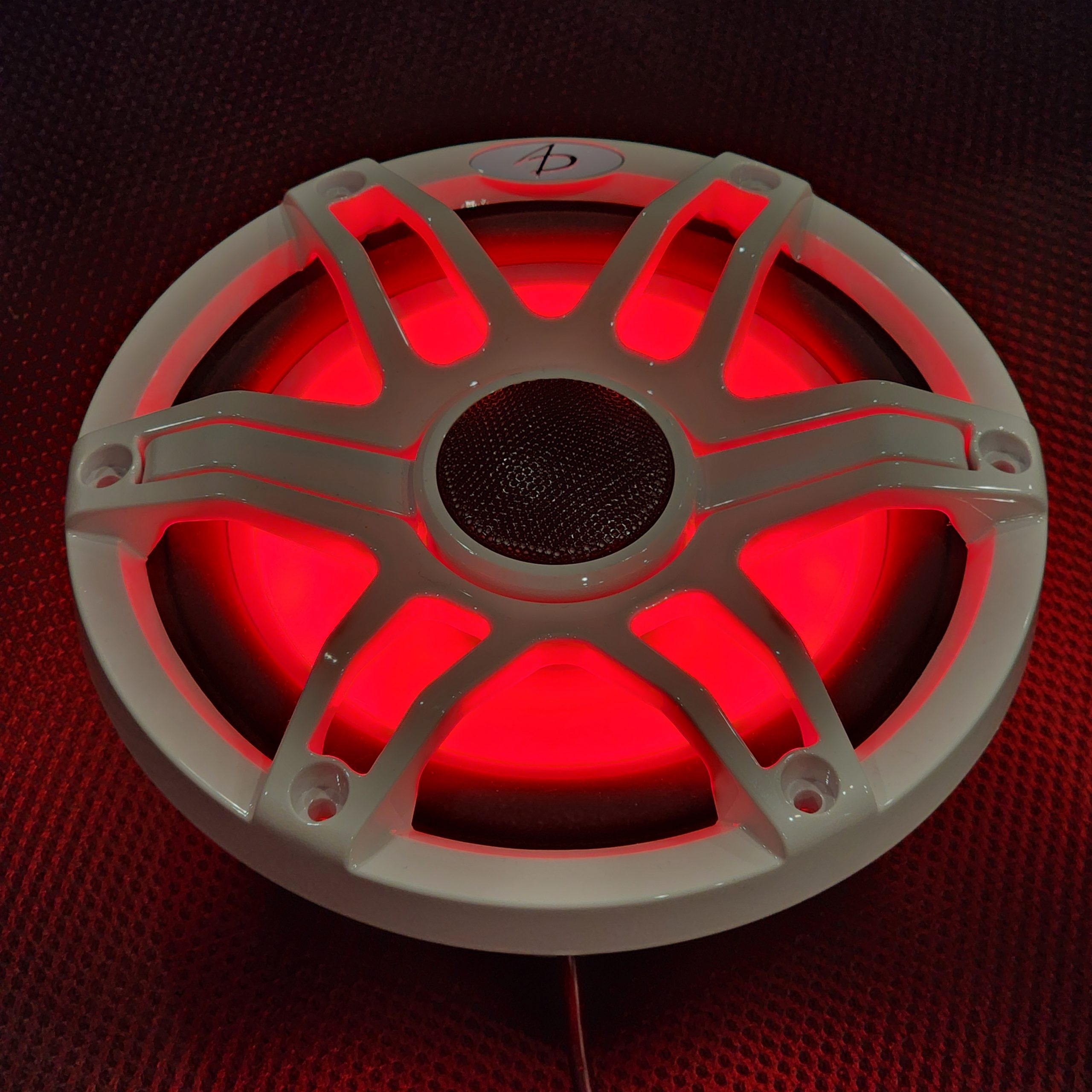

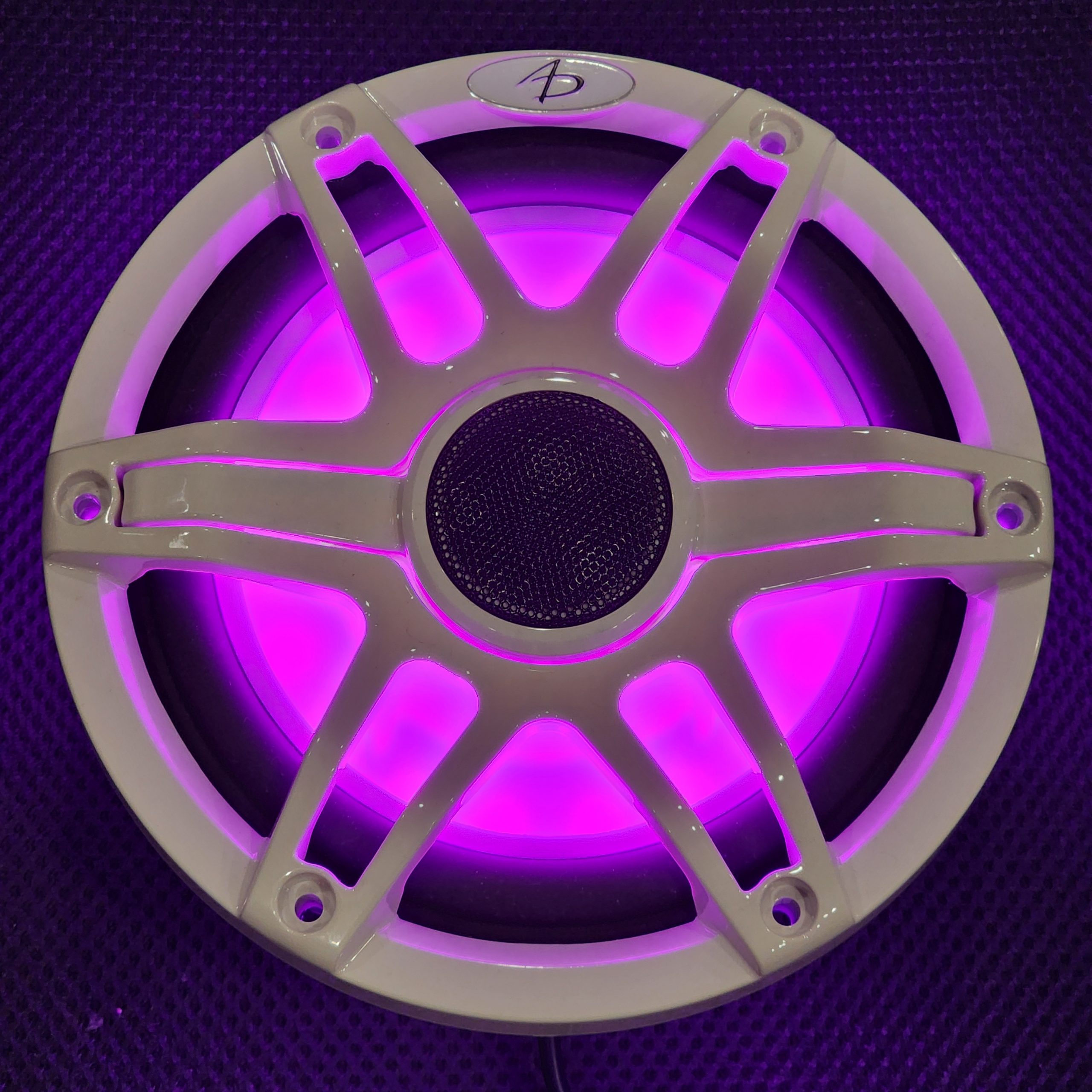

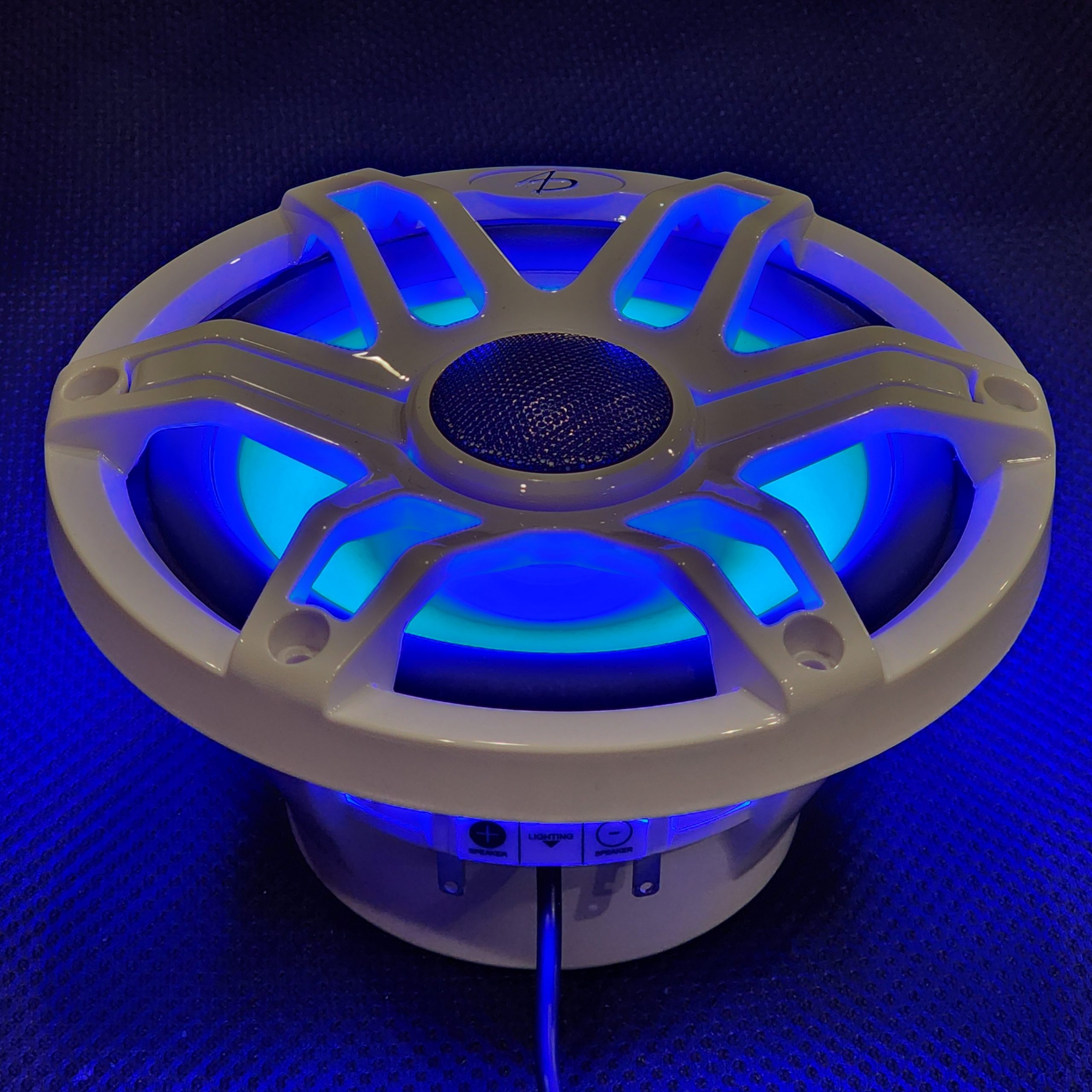

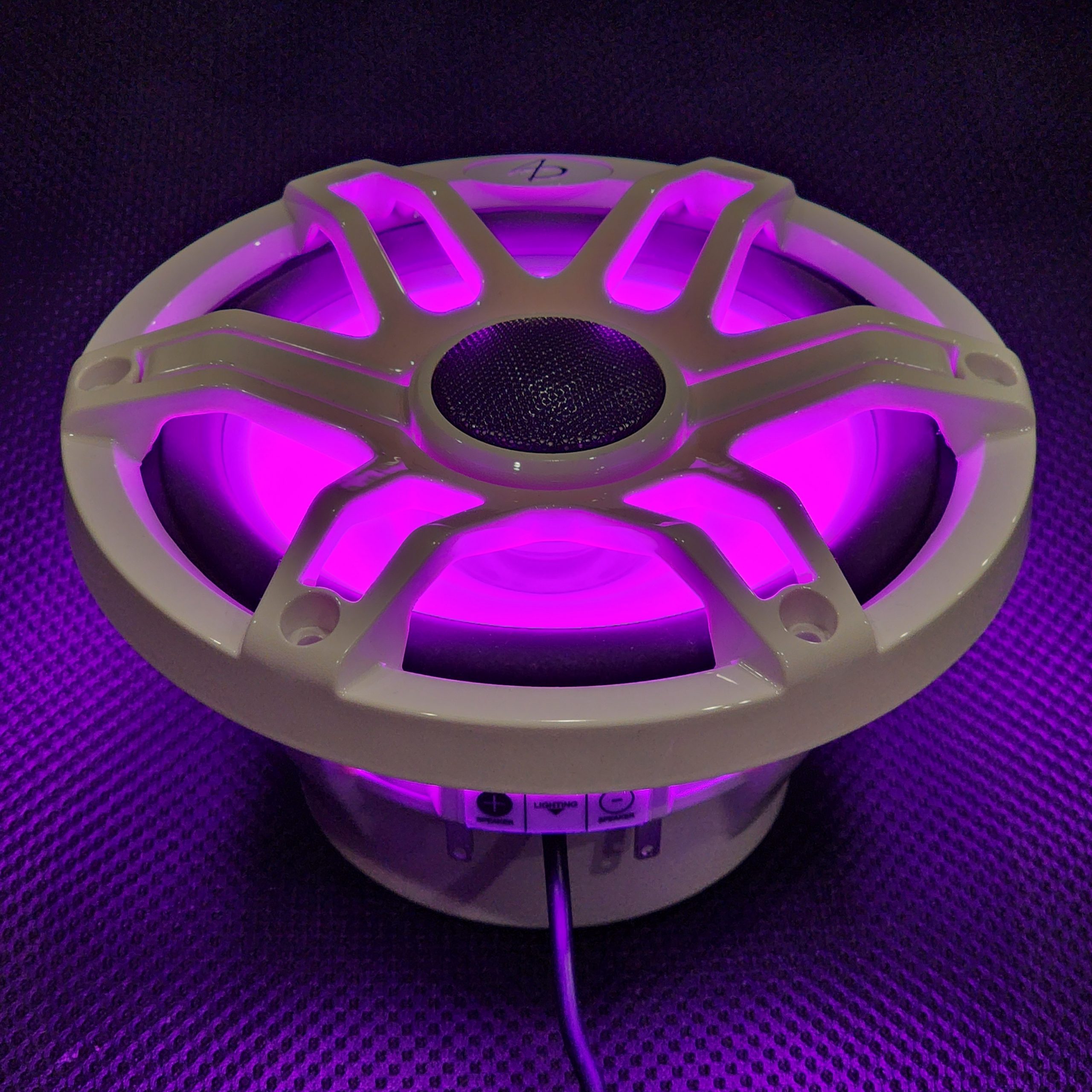

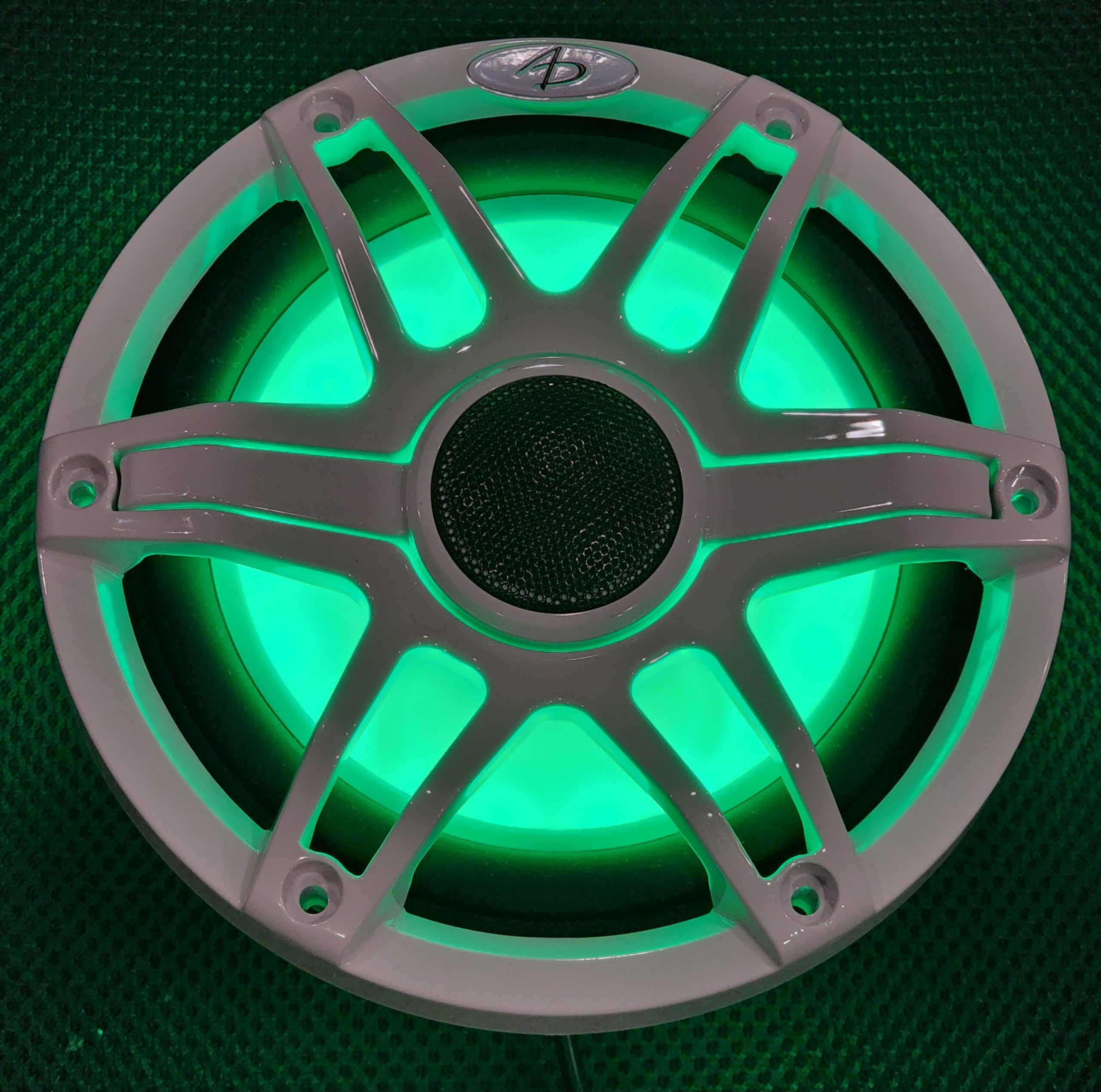

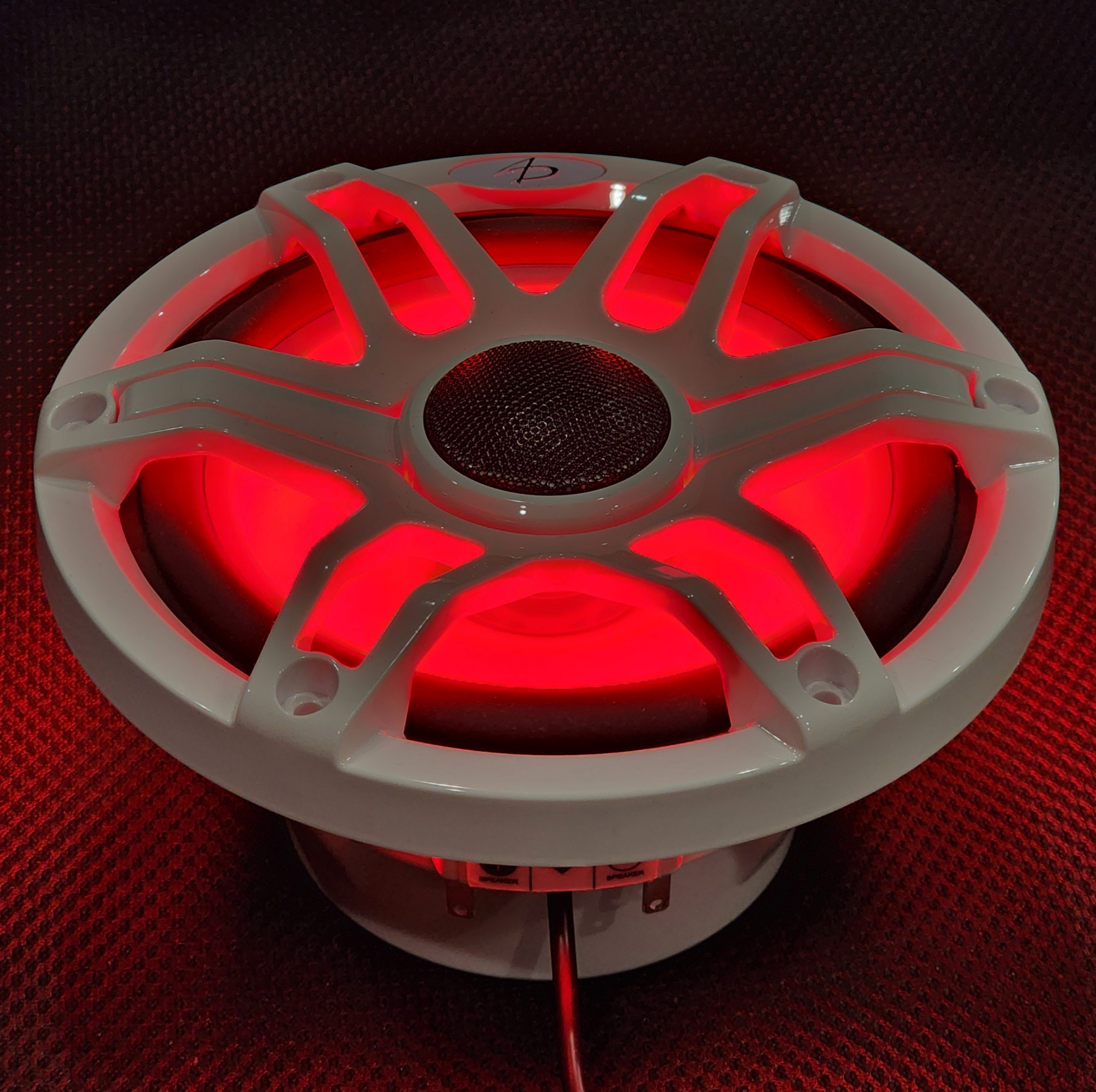

  • Built-in RGB LED Lighting
  • Water Resistant IP65
  • 150 Watts RMS power handling*
  • 100 Watts RMS power handling @ 80Hz
  • Sold in Pairs

All power ratings are figured using an electronic high pass crossover with a minimum crossover point of 150Hz at 24dB/Octave, 200Hz at 18dB/Octave, or 250Hz at 12dB/Octave.

SKU: ADMCX620-W Category:

Description

Fs	74.90 Hz
Qms	4.861
Vas	7.129 l
Cms	0.303 mm/N
Mms	14.892 g
Rms	1.443 kg/s
Dia	128 mm
Sd	128.7 cm²

Qes	0.822
Re	3.2 Ω
Le	 mH

Bl	5.225 Tm
Bl²/Re	 N²/W

Qts	0.703
no	 %
SPL	87.6 dB




Frame Outer Diameter	6.85"    (174mm)
Motor Outer Diameter	2.71"    (68mm)
Mounting Hole Diameter	4.99"    (126.7mm)
Mounting Depth		3.81"    (97mm)
