Description
The 5000 series 10 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions.
Fs 44.03 Hz
Qms 6.618
Vas 6.72 liters
Cms 0.042 mm/N
Mms 306.66 g
Rms 12.82 kg/s
Dia 206 mm
Sd 333.3 sq cm
Qes 0.71
Re 6.4 ohms
Le 3.681 mH
BL 27.65 Tm
BL^2/Re N^2/W
Qts 0.641
no %
SPL 81.06 dB
EBP
XMax 23.5mm
Nominal Diameter 10in
Overall Diameter 10.43in / 265mm
Mounting Hole Diameter 9.29in / 236mm
Motor Outer Diameter 7.87in / 200mm
Mounting Depth 8.07in / 205mm
Required Pole Vent Clearance
Driver Displacement 0.157 cu ft / 4.446 l
Minimum Sealed Volume N/A
Minimum Vented Volume cu ft / l net*
* Tune for desired response

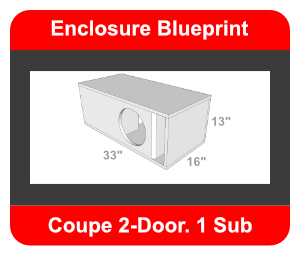

Vehicle body style specific enclosure designs coming soon
The above designs have been engineered for a particular vehicle body style. The cabin acoustics of a sedan, hatchback and an SUV were part of the formula to ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for one off custom designs.
