Description
The 6000 series 18 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions.
Fs 31.93 Hz
Qms 4.905
Vas 73.73 liters
Cms 0.0383 mm/N
Mms 648.3 g
Rms 26.53 kg/s
Dia 385 mm
Sd 1164 sq cm
Qes 0.583
Re 4 ohms
Le 1.577 mH
BL 29.86 Tm
BL^2/Re N^2/W
Qts 0.521
no 0.226 %
SPL 88.14 dB
EBP
XMax 23.5mm
Nominal Diameter 18in
Overall Diameter 18.11in / 460mm
Mounting Hole Diameter 16.77in / 426mm
Motor Outer Diameter 11.02in / 280mm
Mounting Depth 12.08in / 307mm
Required Pole Vent Clearance
Driver Displacement cu ft / l
Minimum Sealed Volume N/A
Vented Volume 2.4 – 6.4cu.ft. Net
* Tune for desired response

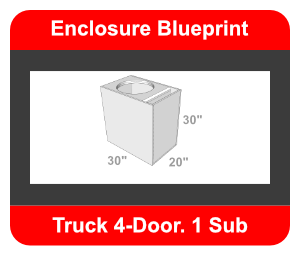

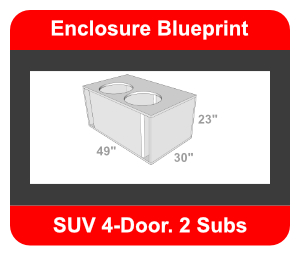

Vehicle body style specific enclosure designs coming soon
The above designs have been engineered for a particular vehicle body style. The cabin acoustics of a sedan, hatchback and an SUV were part of the formula to ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for one off custom designs.
