Description
The 2300 series 10″ employs a finely-tuned balance of damping and motor force to achieve high efficiency, offering exceptional versatility and performance in a variety of real-world functions:
Paired with a traditional (4th order) bass-reflex enclosure, the subwoofer’s output can be focused along a narrow bandwidth for use in sheer loudness / SPL applications. In a 6th order bass-reflex, the output can be spread along a wider frequency range, shifting emphasis onto sound quality with articulate delivery and highly controlled excursion.
Fs 35.26 Hz Qms 4.715 Vas 15.39 l Cms 0.102 mm/N Mms 200.1 g Rms 9.385 kg/s Dia 204.4 mm Sd 325.9 cm² Qes 0.4339 Re 6.622 Ω Le mH Z 7.946 Ω Bl 26.01 Tm Qts 0.3973 no 0.1483 % SPL 83.81 dB EBP 81.26 Nominal Diameter 10 in Overall Diameter 10.30 in / 262 mm Mounting Hole Diameter 9.06 in / 230 mm Bolt Hole Circle Diameter Motor Outer Diameter 6.30 in / 160 mm Mounting Depth 5.65 in / 144 mm Required Pole Vent Clearance Driver Displacement 0.071 cu ft / 2.02 l Minimum Sealed Volume N/A Minimum Vented Volume 0.75 cu ft / 21.33 l net* * Tune for desired response

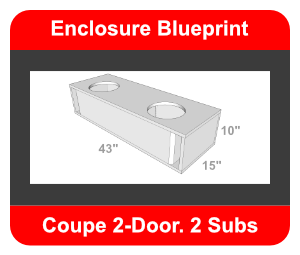

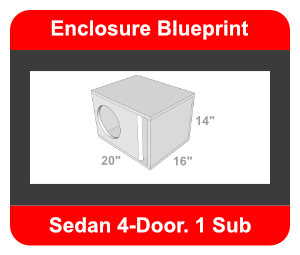

The above designs have been engineered for a “two tier” balance of compatibility: First, between the cabin acoustics of a sedan, hatchback and an SUV, and second, between the two available voice coil configurations, for a total of six balance points. This ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for custom designs.
