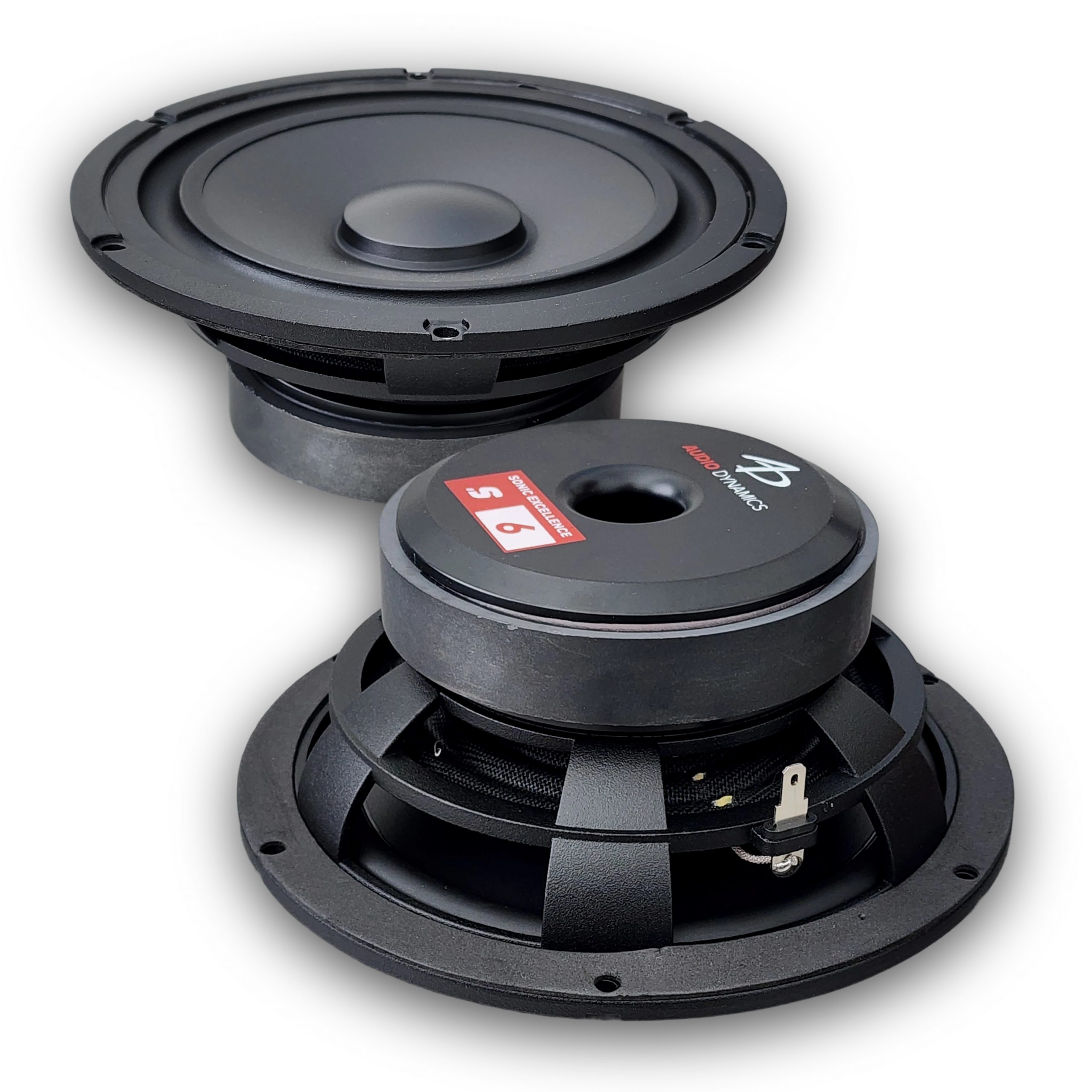

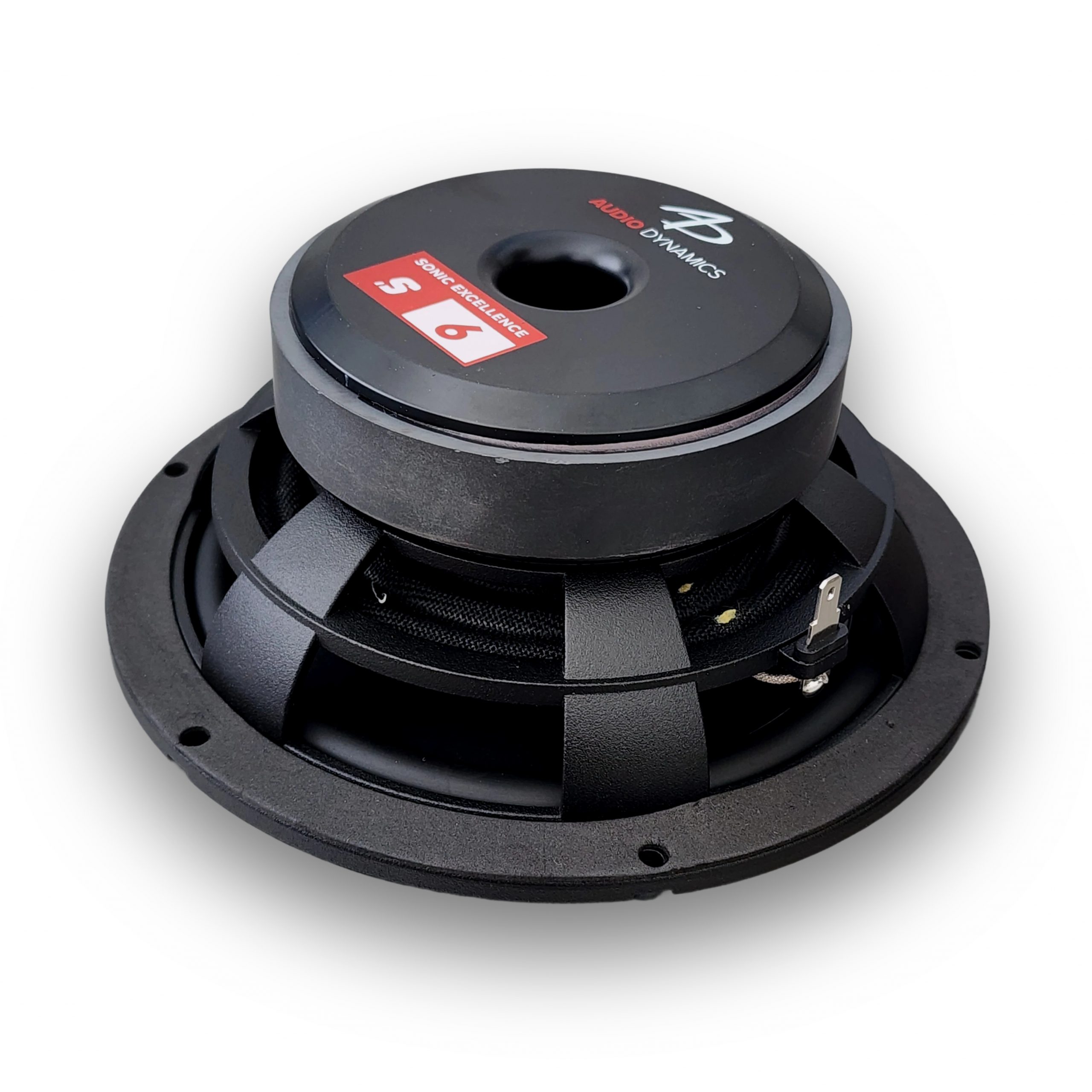

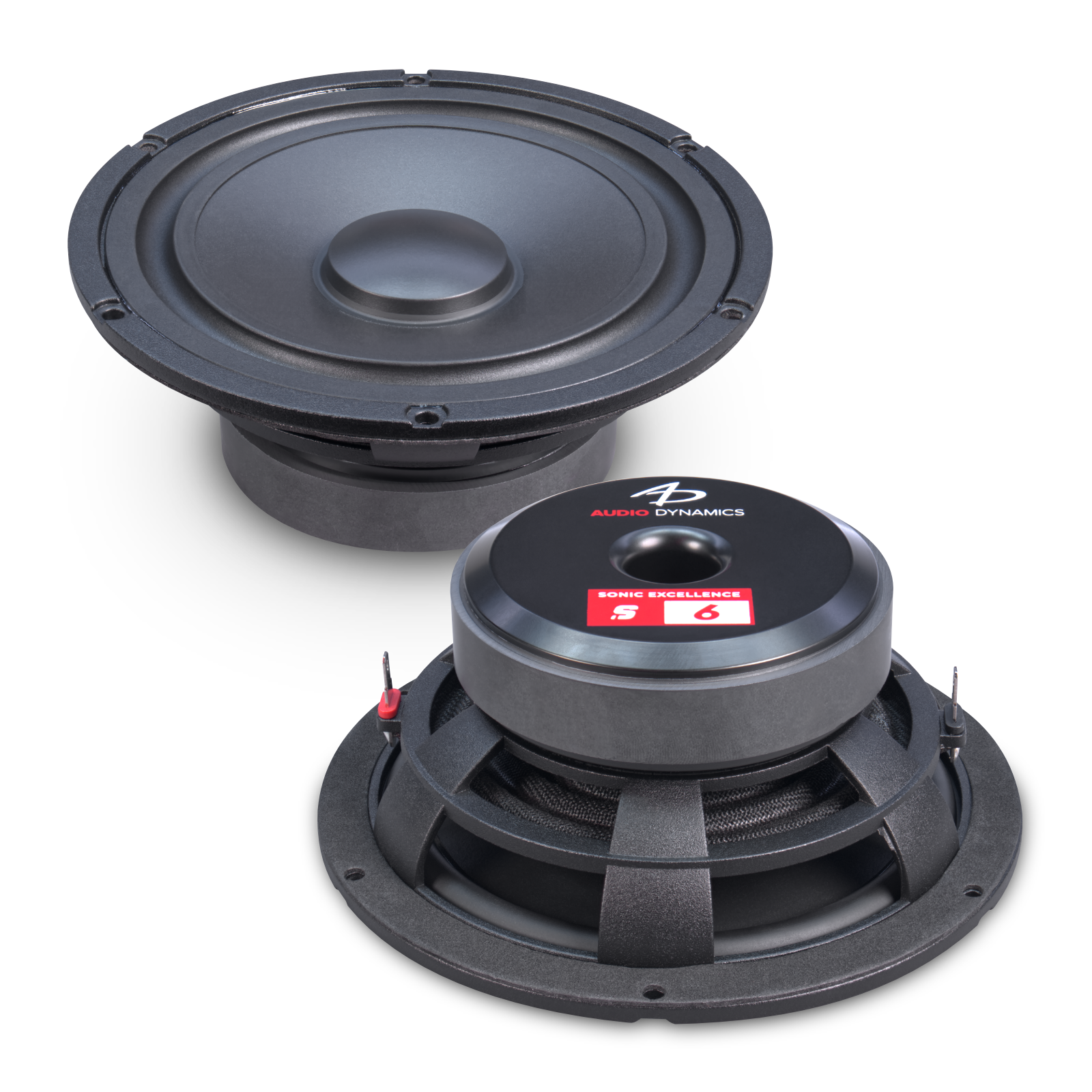

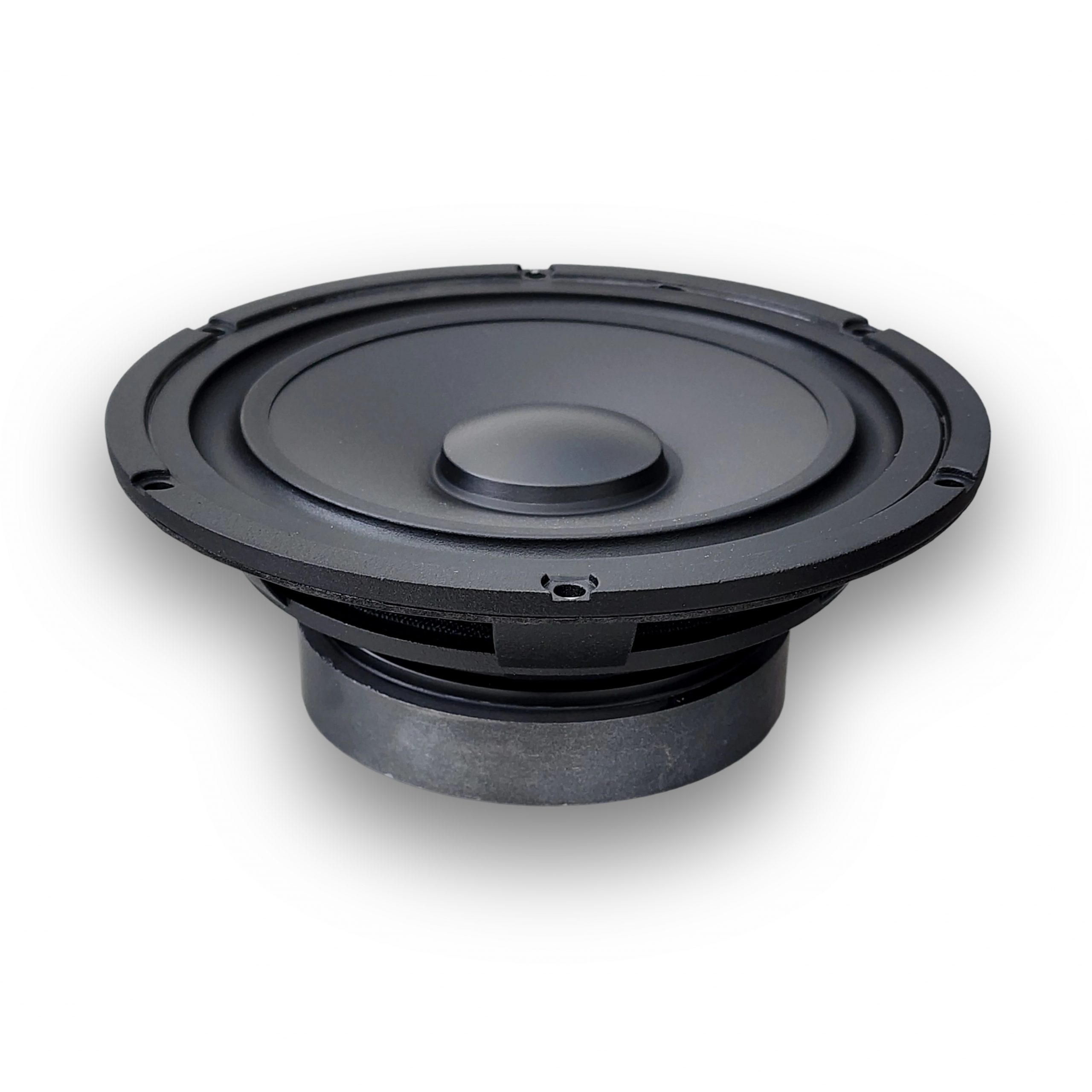

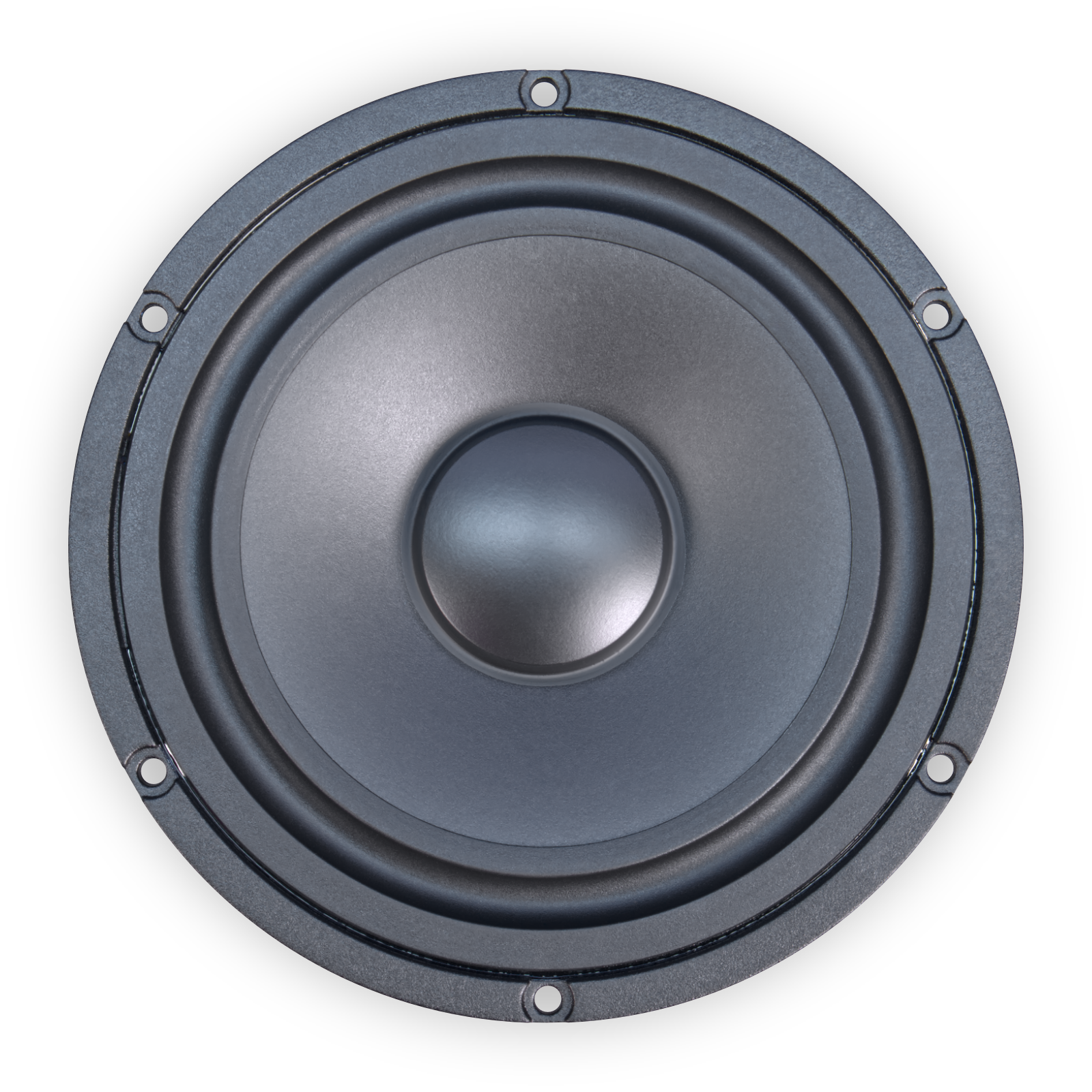

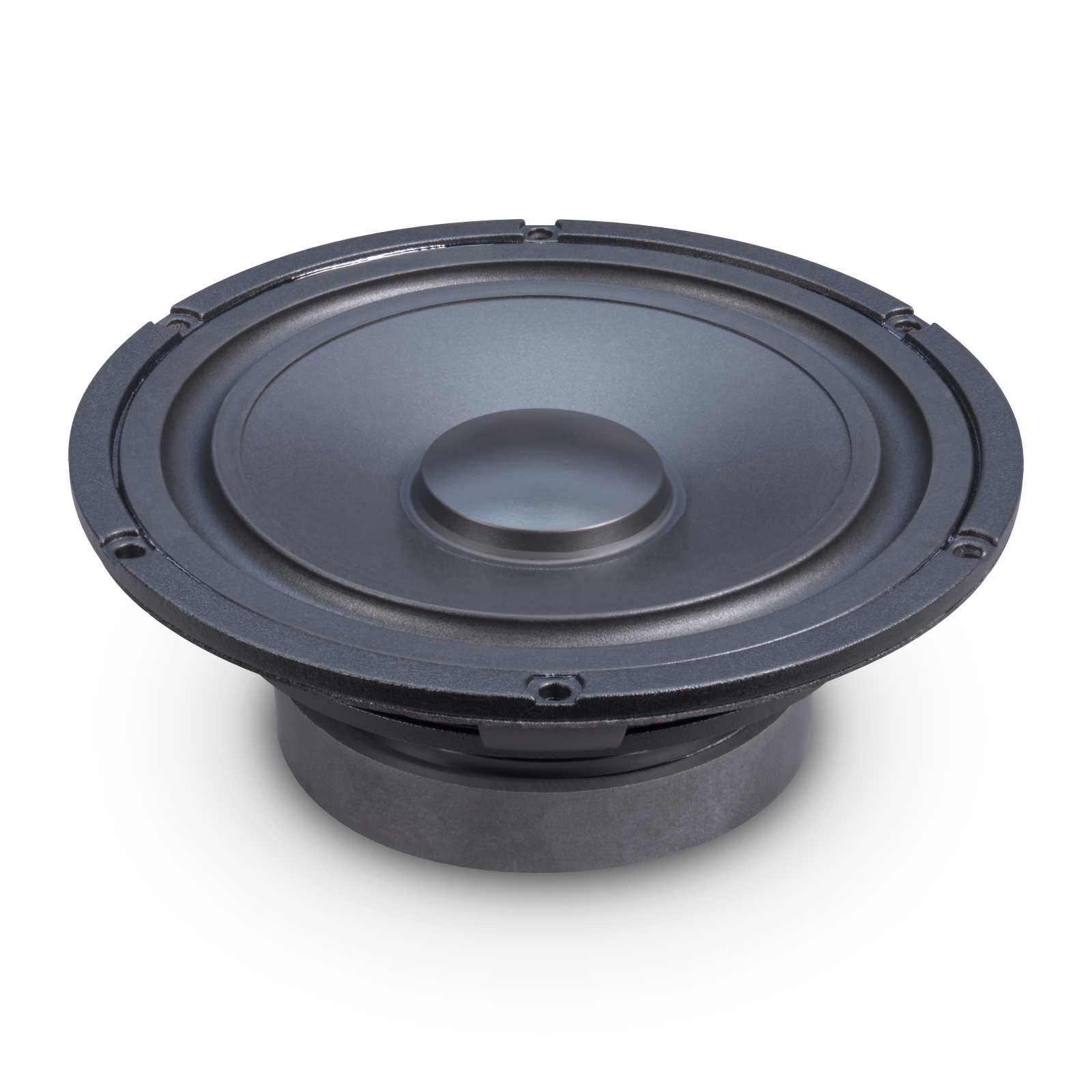

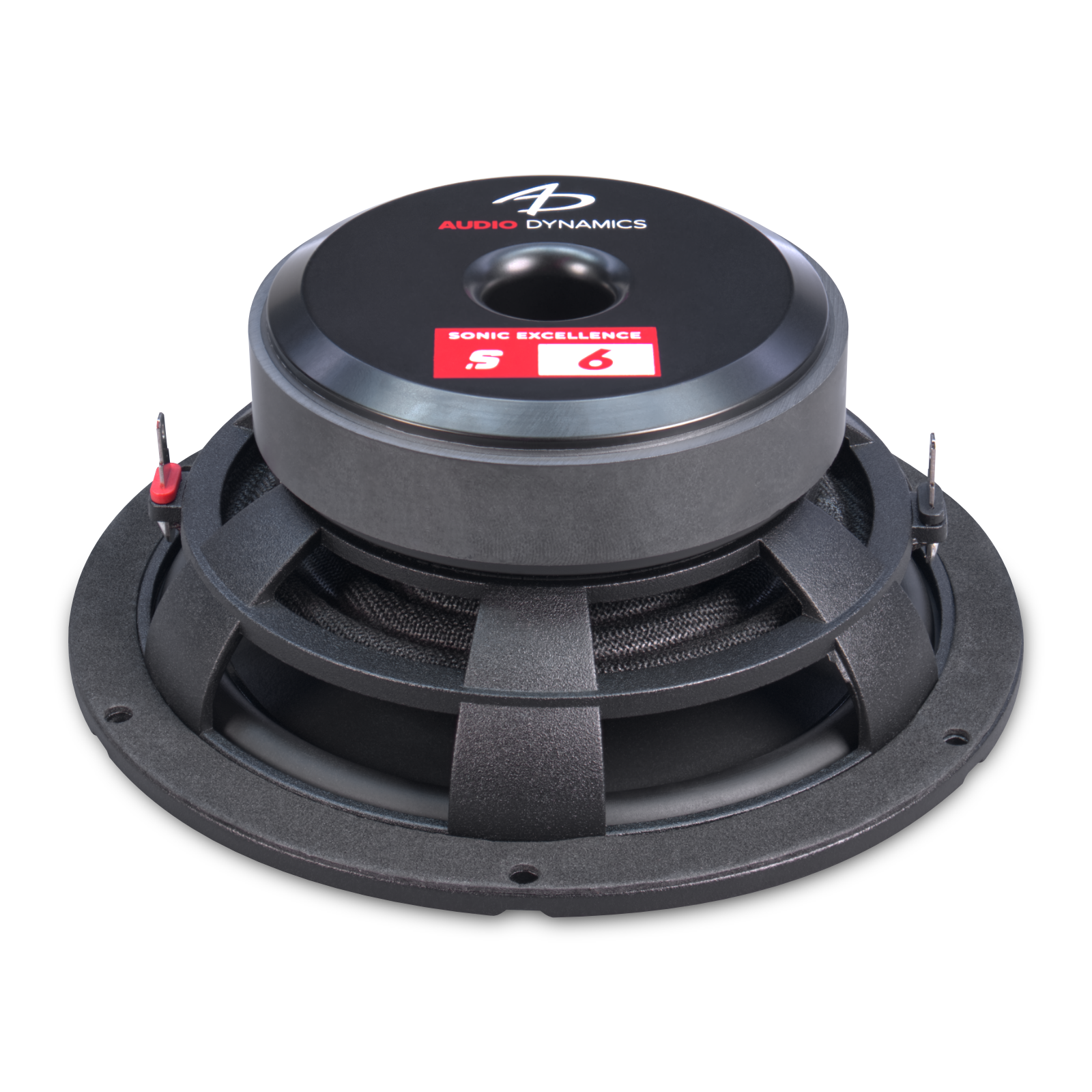

S6 - Sonic Excellence 6.5" mid-woofer
S6 - Sonic Excellence 6.5" mid-woofer - Image 2
S6 - Sonic Excellence 6.5" mid-woofer - Image 3
S6 - Sonic Excellence 6.5" mid-woofer - Image 4

S6 – Sonic Excellence 6.5″ mid-woofer

$399.00



  • 6.5″ Mid-woofer
  • Custom tooled cast frame with integral anti-resonance termination ring
  • 1.5″ (38.5mm) voice coil for extreme power handling and motor force
  • Split aluminum black anodized former for improved power handling and magnetic damping
  • Optimized overhung magnetic circuit with extended pole for symmetric BL
  • Flat BL during linear excursion results in dynamics and impact
  • +/- 5.5mm of linear excursion
  • Bottomless speaker design with suspension-limited travel
  • Dual layer thermo-laminated polymer cone with mineral loading
  • Low-loss natural rubber inverted surround
  • Nickel plated terminals
  • Sold in pairs
  • 4 ohm
  • 200 Watts RMS power handling*

* All power ratings are figured using an electronic high pass crossover with a minimum crossover point of 80Hz at 24dB/Octave, 90Hz at 18dB/Octave, or 110Hz at 12dB/Octave.

SKU: S6 Categories: , , ,

Description

Overview

The Sonic Excellence S6 mid-woofer is a high stroke, low distortion high output mid-woofer.  This speaker features high stroke, low distortion, wide bandwidth, and high power handling.  It features a 38.5mm / 1.5” voice coil diameter for high power handling and motor force.

The S6 mid-woofer features an optimized overhung magnetic circuit which provides ±5.5mm of linear excursion, allowing for displacement greater than most 6.5 inch mid-bass. The extended pole provides a symmetrical and high linear stroke for exceptional dynamics and impact.

The S6 has integral shorting rings within its magnetic structure. This feature results in exceptionally low inductance at all operational frequencies and across stroke.  This reduces motional intermodulation distortion for a much more open and natural midrange.

The S6 uses a dual layer thermo-laminated polymer cone with mineral loading for superior damping.

The S6 uses a custom tooled shallow basket, surround, cone, and spider which results in a very shallow mounting depth so the mid-woofer can fit into shallow locations, enabling creative positioning for best acoustical performance.

Crossover Frequency and power handling

The S6 mid-woofer is a wide bandwidth, high stroke speaker.  A low pass crossover should be set no higher than 3500 Hz.  The actual value should be selected based upon the paired tweeter, midrange, or full-range speaker.

The bottom end is robust, and can often forego a subsonic filter.  The following table summarizes general guidelines about a subsonic filter.  As noted above, this is not a hard-and-fast set of limits, and the final installation needs to be considered when setting actual crossover values and gains.

Power 6dB/Oct 12dB/Oct 18dB/Oct 24dB/Oct
50W Not necessary Not necessary Not necessary Not necessary
100W Not recommended 85 Hz 75 Hz 65 Hz
200W Not recommended 110 Hz 90 Hz 80 Hz

Note that with lower power applications, these frequencies may be adjusted down; with higher power, you may need to adjust the frequencies up.  Again, the actual implementation of the entire system needs to be considered when installing these products.  A small sealed chamber behind the midrange can increase mechanical power handling, but may negatively impact thermal power handling.



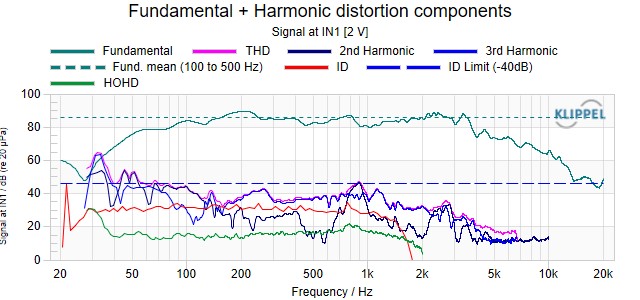

Thiele Small Parameters

Nominal Impedance 4 Ohms
Nominal SPL 85.91 dB @ 1W, 1m (89.59 dB @ 2.83Vrms, 1m)
Resonant Frequency (Fs) 65.55 Hz ±10%
Total System Q (Qts) 0..68 ±15%
Equivalent Volume Air (Vas) 7.007 liters  ±15%
Motor Force (BL) 5.703 N/A  ±10%
Inductance at 1 kHz (Le) 0.3 mH  ±5%
DC Resistance (DCR) 3.43 Ohms  ±5%
Moving Mass (Mms) 18.42 grams  ±10%
Electrical Q (Qes) 0.8 ±10%
Mechanical Q (Qms) 4.6 ±15%
Diaphragm Surface Area (Sd) 124.2 cm²±2%
Linear Excursion (Xmax) 5.5mm one way  ±5%
