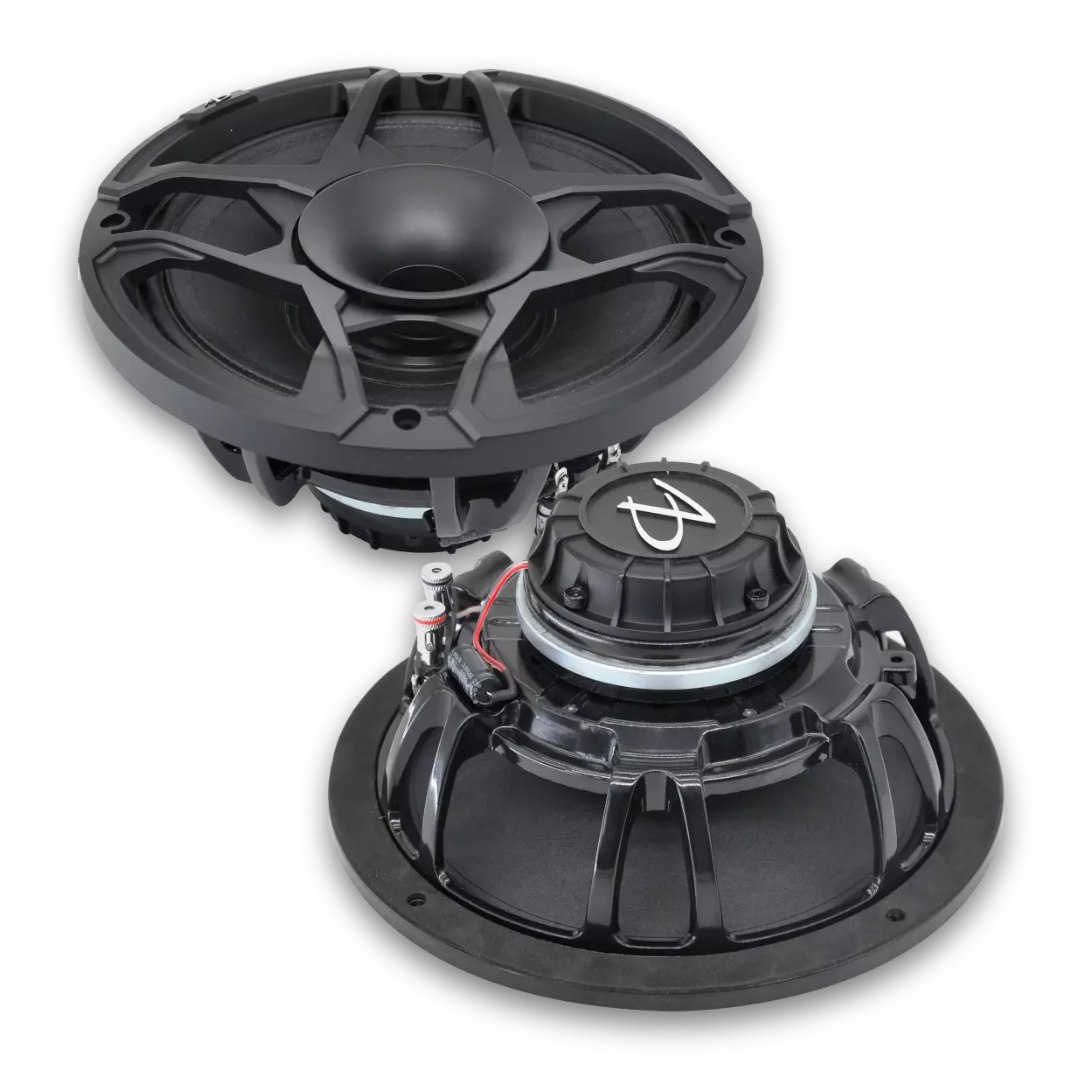

3000 Series 8″ – 4 Ohm Pair – PCX830S4

$429.00



  • 4 Ohm 8″ (217.5 mm) Pro Coaxial
  • Die Cast Aluminum Basket
  • Treated Paper Cone
  • Lightweight Cloth Surround
  • Waterproof Treated Cone Spider (covers horn gap)
  • 1.5″ (38 mm) High Temperature Midrange Voice Coil
  • High Energy N38 Neodymium Motor
  • Black Composite Grills Included
  • 1″ (25mm) High Temperature Tweeter Voice Coil
  • Built-in Tweeter Crossover
  • 200 Watts RMS power handling*
  • 96dB Midrange Sensitivity @ 1W/1m
  • 104dB Tweeter Sensitivity @ 1W/1m
  • Sold in Pairs

All power ratings are figured using an electronic high pass crossover with a minimum crossover point of 150Hz at 24dB/Octave, 200Hz at 18dB/Octave, or 250Hz at 12dB/Octave.

SKU: ADPCX830S4 Categories: ,

Description

Fs	 Hz
Qms
Vas	 l
Cms	 mm/N
Mms	 g
Rms	 kg/s
Dia	 mm
Sd	 cm²

Qes
Re	 Ω
Le	 mH
Z	 Ω
Bl	 Tm
Bl²/Re	 N²/W

Qts
no	 %
SPL	 dB




Frame Outer Diameter	8 9/16"   (217.5mm)
Motor Outer Diameter	3 9/16"   (90mm)
Tweeter Protrusion	 15/16"    (23mm)
Mounting Hole Diameter	7 1/8"   (181mm)
Mounting Depth		3 3/4"  (95mm)
