AD5015 D4

$739.00

  • 1,500W – 2,000W optimal power range
  • 3 inch high temp voice coil
  • Triple stack 332oz motor
  • 48.5lb total weight
  • 23.5mm Xmax
  • Double high current tinsel leads
  • Double blend material spider
  • Designed for use in vented enclosures.
  • Engineered in the USA.
  • Also available in D2
SKU: AD5015 D4 Categories: ,

Description

The 5000 series 15 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions.

Fs 32.97 Hz
Qms 8.94
Vas 32.93 liters
Cms 0.039 mm/N
Mms 591.3 g
Rms 13.845 kg/s
Dia 313.400 mm
Sd 771.055 sq cm

Qes 0.979
Re 4.546 ohms
Le  4.602 mH
Z     5.455  ohms
BL 23.86 Tm
BL^2/Re  125.231 N^2/W

Qts 0.882
no    0.116 %
SPL 82.802 dB
EBP  33.691

XMax 23.5mm

Nominal Diameter 15in
Overall Diameter 15.5in / 395mm
Mounting Hole Diameter 13.77in / 350mm
Bolt Hole Circle Diameter
Motor Outer Diameter 7.87in / 200mm
Mounting Depth 10in / 255mm
Required Pole Vent Clearance
Driver Displacement 0.196 cu ft / 5.537 l

Minimum Sealed Volume N/A
Minimum Vented Volume   cu ft / l net*

* Tune for desired response

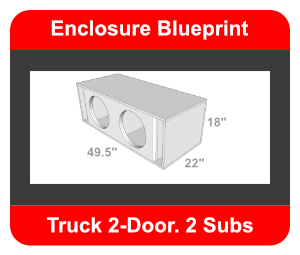

Vehicle body style specific enclosure designs coming soon

The above designs have been engineered for a particular vehicle body style. The cabin acoustics of a sedan, hatchback and an SUV were part of the formula to ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for one off custom designs.
