AD6012 D2


  • 2,000W – 4,000W optimal power range
  • 4 inch flat wire high temp voice coil
  • Triple stack 500oz motor
  • 84lb total weight
  • 23.5mm Xmax
  • Double high current tinsel leads
  • Triple blend material spider
  • Designed for use in vented enclosures.
  • Engineered in the USA.
SKU: AD6012 D2 Categories: ,


The 6000 series 12 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions.

Fs 34.54 Hz
Qms 4.591
Vas 12.61 liters
Cms 0.042 mm/N
Mms 505.8 g
Rms 23.91 kg/s
Dia 242.000 mm
Sd 460.00 sq cm

Qes 0.738
Re 4.00 ohms
Le     mH
Z       ohms
BL 24.39 Tm
BL^2/Re  N^2/W

Qts 0.636
no 0.0679 %
SPL 80.3 dB

XMax 23.5mm

Nominal Diameter 12in
Overall Diameter 12.99in / 330mm
Mounting Hole Diameter 11.33in / 288mm
Bolt Hole Circle Diameter
Motor Outer Diameter 9.8in / 250mm
Mounting Depth 9.44in / 240mm
Required Pole Vent Clearance
Driver Displacement 0.257 cu ft / 7.27 l

Minimum Sealed Volume N/A
Minimum Vented Volume   cu ft / l net*

* Tune for desired response

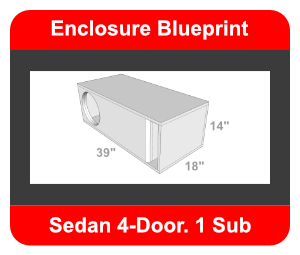

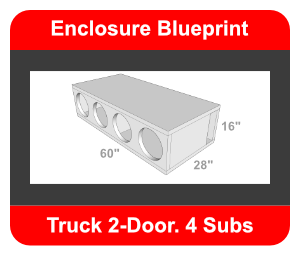

Vehicle body style specific enclosure designs coming soon

The above designs have been engineered for a particular vehicle body style. The cabin acoustics of a sedan, hatchback and an SUV were part of the formula to ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for one off custom designs.
