AD6012 D1

$1,499.00

  • 2,000W – 4,000W optimal power range
  • 4 inch flat wire high temp voice coil
  • Triple stack 500oz motor
  • 84lb total weight
  • 23.5mm Xmax
  • Double high current tinsel leads
  • Triple blend material spider
  • Designed for use in vented enclosures.
  • Engineered in the USA.
  • Also available in D2
  • Sold individually
SKU: AD6012 D1 Categories: ,

Description

The 6000 series 12 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions.

Fs 32.9 Hz
Qms 5.401
Vas 12.23 liters
Cms 0.0407 mm/N
Mms 575 g
Rms 22.01 kg/s
Dia 242 mm
Sd 460 sq cm

Qes 0.591
Re 2.00 ohms
Le     mH
Z       ohms
BL 20.05 Tm
BL^2/Re  N^2/W

Qts 0.533
no 0.071 %
SPL 80.5 dB
EBP

XMax 23.5mm

Nominal Diameter 12in
Overall Diameter 12.99in / 330mm
Mounting Hole Diameter 11.33in / 288mm
Bolt Hole Circle Diameter
Motor Outer Diameter 9.8in / 250mm
Mounting Depth 9.44in / 240mm
Required Pole Vent Clearance
Driver Displacement 0.257 cu ft / 7.27 l

Minimum Sealed Volume N/A
Minimum Vented Volume   cu ft / l net*

* Tune for desired response

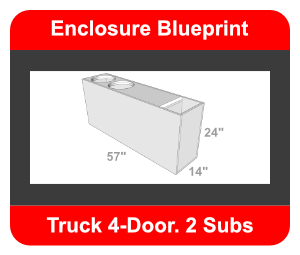

Vehicle body style specific enclosure designs coming soon

The above designs have been engineered for a particular vehicle body style. The cabin acoustics of a sedan, hatchback and an SUV were part of the formula to ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for one off custom designs.
