4000 Series 3″ Point Source – PS343

$399.00



  • 3″ (75 mm) Cast frame Point Source
  • 5/8 ” (16 mm) titanium dome tweeter

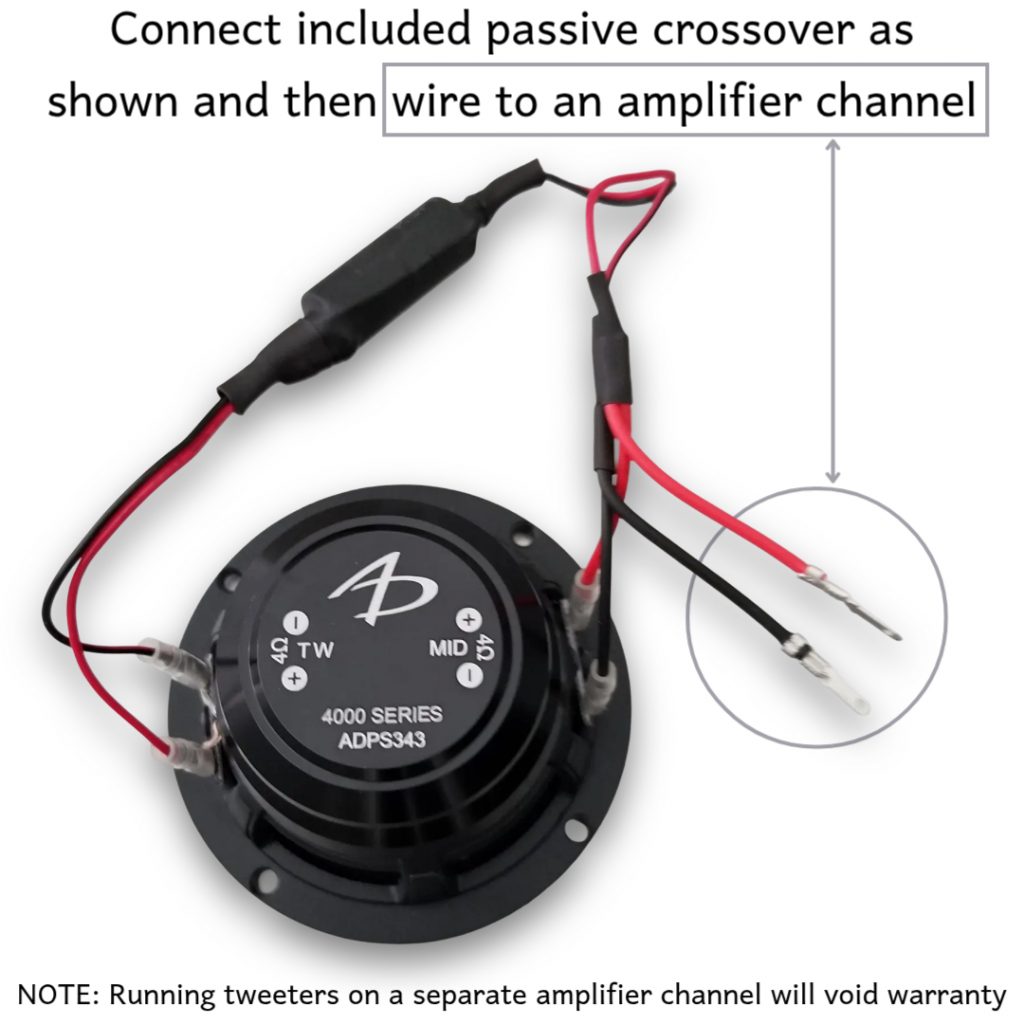

  • Polypropylene capacitor provided for tweeter
  • Neodymium motor
  • Perfectly blended wool pulp cone for realistic tonal accuracy
  • 60 count yarn cloth surround
  • 1″ (20 mm) voice coil on mid/woofer
  • Shorting ring for extended response
  • Gold plated terminals
  • Optimal bandwidth: 300 Hz – 20 kHz
  • 4 ohm nominal impedance
  • 150 Watts RMS power handling*

All power ratings are figured using an electronic high pass crossover with a minimum crossover point of 400 Hz at 24 dB/Octave, 500 Hz at 18 dB/Octave, or 600 Hz at 12 dB/Octave.

SKU: ADPS343 Categories: , , , ,

Description

Audio Dynamics speakers were designed to reproduce music with ultimate accuracy.
We’ve spent countless listening hours examining the tonal qualities of many different cone materials; from glass fiber, to Kevlar, to carbon fiber and more. Ultimately, we chose wool pulp for its ability to deliver astonishing realism and detailed timbre across the harmonics. We then added an acoustically-transparent chemical to help the soft parts resist moisture.
Our speakers will pull you into the musical performance and breath new life into your music collection.

                 Midrange                  Tweeter

Fs	140.500 Hz     2402.000 Hz
Qms	  6.709           0.740
Vas	  0.874 l
Cms	  0.711 mm/N
Mms	  1.785 g
Rms	  0.238 kg/s
Dia	 61.210 mm       18.090 mm
Sd	 29.426 cm²       2.570 cm²

Qes	  1.199           5.285
Re	  3.240 Ω         3.527 Ω
Le	  0.077 mH        0.028 mH
Z	  3.888 Ω         4.232 Ω
Bl	  2.064 Tm
Bl²/Re	  1.314 N²/W

Qts	  1.017
no	  0.195 %
SPL	 85.045 dB

Frame Outer Diameter	3 5/87"   (91.5 mm)
Motor Outer Diameter	2 1/2"   (63 mm)
Mounting Hole Diameter	3 1/16"  (78 mm)
Mounting Depth		1 13/16" (36 mm)
