AD1412 S4


  • 12″ single 4 ohm subwoofer
  • 75W – 300W optimal power range
  • Designed for use in moderate size sealed and vented enclosures and infinite baffle
  • Engineered in the USA.
SKU: AD1412 S4 Categories: ,


The 1400 series 12 is optimized for linear performance and versatility in medium size sealed and vented enclosures and infinite baffle alignments.

Fs	42.8 Hz
Qms	8.146
Vas	35.55 l
Cms	0.102 mm/N
Mms	136.2 g
Rms	4.997 kg/s
Dia	251.000 mm
Sd	494.809 cm²
Qes	0.8289
Re	3.782 Ω
Le	2.447 mH
Z	40.95 Ω
Bl	12.93 Tm
Bl²/Re	 N²/W

Qts	0.7523
no	0.3206 %
SPL	87.16 dB

Nominal Diameter		12in
Overall Diameter		12.36in / 314mm
Mounting Hole Diameter		11in / 279mm
Bolt Hole Circle Diameter
Motor Outer Diameter
Mounting Depth			5.39in / 137mm
Required Pole Vent Clearance
Driver Displacement		0.06 cu ft / 1.78l

Minimum Sealed Volume		1.25 cu ft / 35l net
Minimum Vented Volume		2.00 cu ft / 56l net*
Infinite Baffle Approved
* Tune for desired response


Single trunk enclosure:

Dual trunk enclosure:

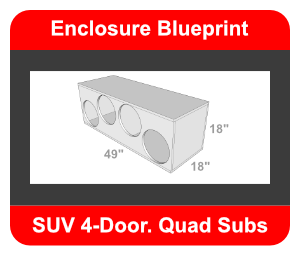

Single SUV enclosure:

Dual SUV enclosure:

Single truck enclosure:

Dual truck enclosure:

The above designs have been engineered for a “two tier” balance of compatibility: First, between the cabin acoustics of a sedan, hatchback and an SUV, and second, between the two available voice coil configurations, for a total of six balance points. This ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for custom designs.
