The 2200 series 10″ employs a finely-tuned balance of damping and motor force to achieve high efficiency, offering exceptional versatility and performance in a variety of real-world functions:
Paired with a traditional (4th order) bass-reflex enclosure, the subwoofer’s output can be focused along a narrow bandwidth for use in sheer loudness / SPL applications. In a 6th order bass-reflex, the output can be spread along a wider frequency range, shifting emphasis onto sound quality with articulate delivery and highly controlled excursion.
Fs 32.97 Hz Qms 6.71 Vas 16.57 l Cms 0.10 mm/N Mms 219.40 g Rms 6.84 kg/s Dia 206 mm Sd 333.29 cm² Qes 0.49 Re 4.26 Ω Le 1.77 mH Z 4.00 Ω Bl 19.72 Tm Bl²/Re 91.24 N²/W Qts 0.46 no 0.11 % SPL 82.75 dB EBP 66.19 Nominal Diameter 10 in Overall Diameter 10.30 in / 262 mm Mounting Hole Diameter 9.06 in / 230 mm Bolt Hole Circle Diameter Motor Outer Diameter 6.30 in / 160 mm Mounting Depth 5.77 in / 147 mm Required Pole Vent Clearance Driver Displacement 0.071 cu ft / 2.02 l Minimum Sealed Volume N/A Minimum Vented Volume 0.75 cu ft / 21.33 l net* * Tune for desired response

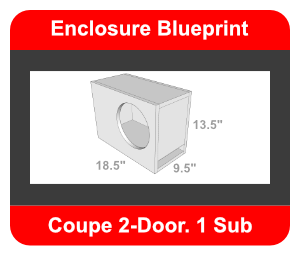

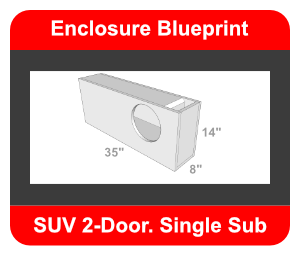

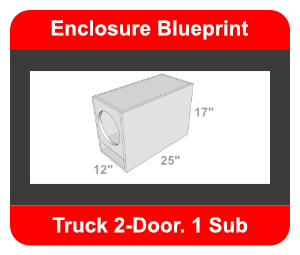

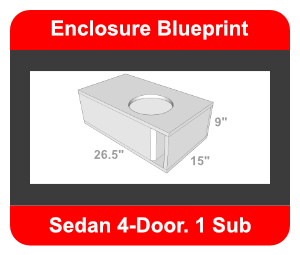

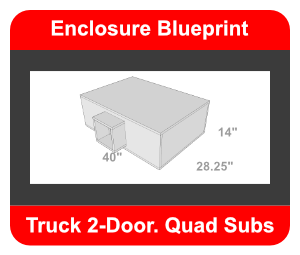

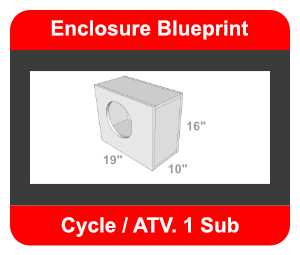

The above designs have been engineered for a “two tier” balance of compatibility: First, between the cabin acoustics of a sedan, hatchback and an SUV, and second, between the two available voice coil configurations, for a total of six balance points. This ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for custom designs.
