Description

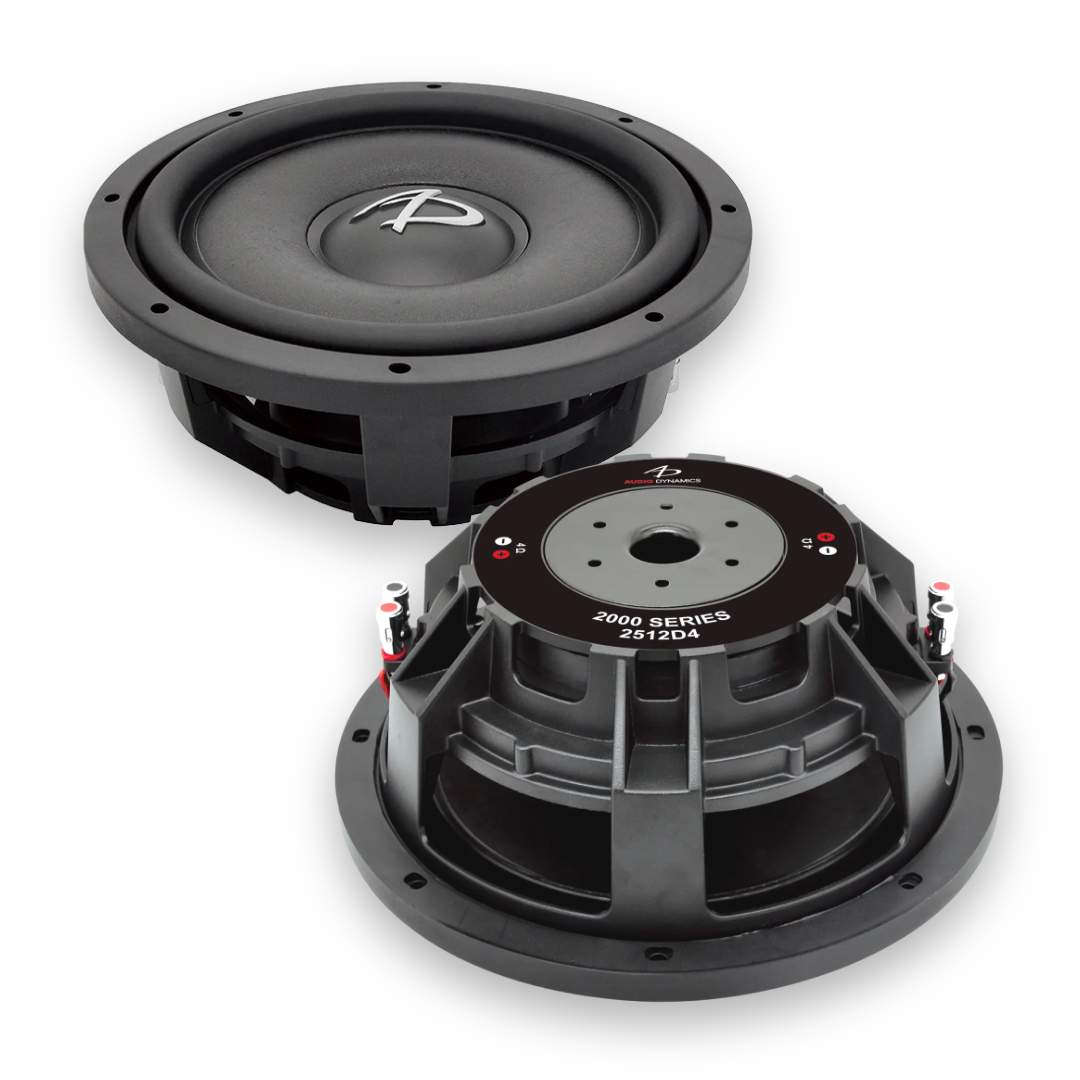

The 2500 series 12 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions.
Fs 33.58 Hz
Qms 6.548
Vas 34.8 liters
Cms 0.0953 mm/N
Mms 235.7 g
Rms 7.595 kg/s
Dia 254.1 mm
Sd 507.1 sq cm
Qes 0.585
Re 6.28 ohms
Le 4.421 mH
BL 23.11 Tm
BL^2/Re N^2/W
Qts 0.537
no %
SPL 85.52 dB
EBP 57.40
XMax 15.0mm
Nominal Diameter 12in
Overall Diameter 12.99in / 330mm
Mounting Hole Diameter 11.37in / 287mm
Bolt Hole Circle Diameter
Motor Outer Diameter 6.14in / 156mm
Mounting Depth 4.33in / 110mm
Required Pole Vent Clearance
Driver Displacement cu ft / l
Sealed Volume 0.750 – 1.0 cu.ft.
Vented Volume 1.5 – 3.0 cu.ft. net
* Tune for desired response
Vehicle body style specific enclosure designs coming soon
The above designs have been engineered for a particular vehicle body style. The cabin acoustics of a sedan, hatchback, SUV, and under seat truck placement were part of the formula to ensure a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for one off custom designs.
