Description

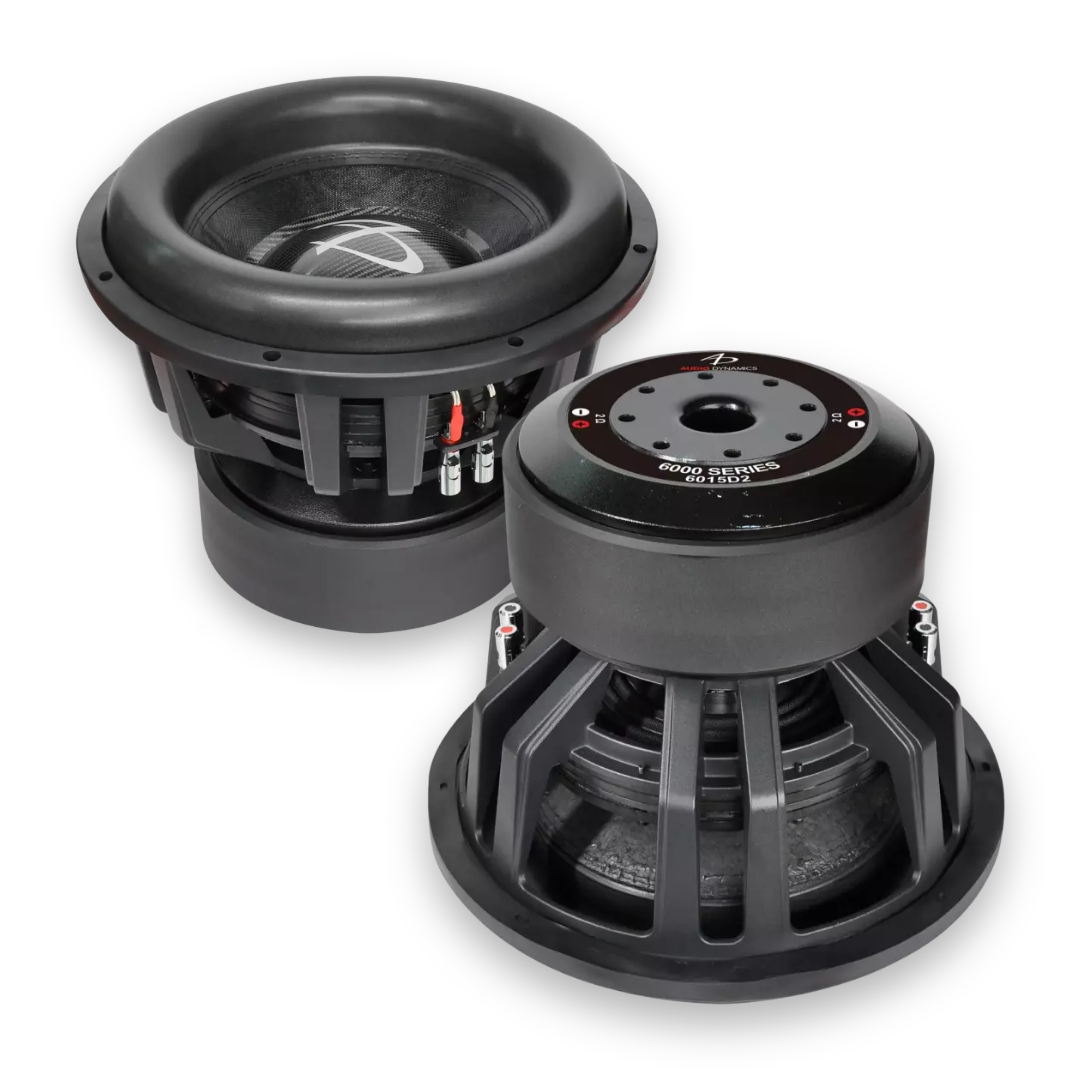

The 6000 series 15 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions.
Dual 1 ohm
Fs 36.81 Hz
Qms 8.277
Vas 22.14 liters
Cms 0.026 mm/N
Mms 720.3 g
Rms 20.09 kg/s
Dia 314 mm
Sd 774.3 sq cm
Qes 0.68
Re 1.675 ohms
Le 1.73 mH
Z 22.06 ohms
BL 20.26 Tm
Qts 0.628
no 0.157 %
SPL 84.09 dB
EBP 54.13
Dual 2 ohm
Fs 40.27 Hz
Qms 7.927
Vas 21.58 liters
Cms 0.025 mm/N
Mms 617.3 g
Rms 19.71 kg/s
Dia 314.1 mm
Sd 775 sq cm
Qes 0.893
Re 3.619 ohms
Le 2.55 mH
BL 25.16 Tm
BL^2/Re N^2/W
Qts 0.803
no 0.226 %
SPL 83.97 dB
EBP
XMax 23.5mm (one-way linear excursion)
Nominal Diameter 15in
Overall Diameter 15.5in / 395mm
Mounting Hole Diameter 13.77in / 350mm
Bolt Hole Circle Diameter
Motor Outer Diameter 9.8in / 250mm
Mounting Depth 10.6in / 270mm
Required Pole Vent Clearance
Driver Displacement 0.285 cu ft / 8.075 l
Minimum Sealed Volume N/A
Minimum Vented Volume cu ft / l net*
* Tune for desired response
