Description
The SDx amplifiers have double the thermal capacity as the original SD amplifiers.

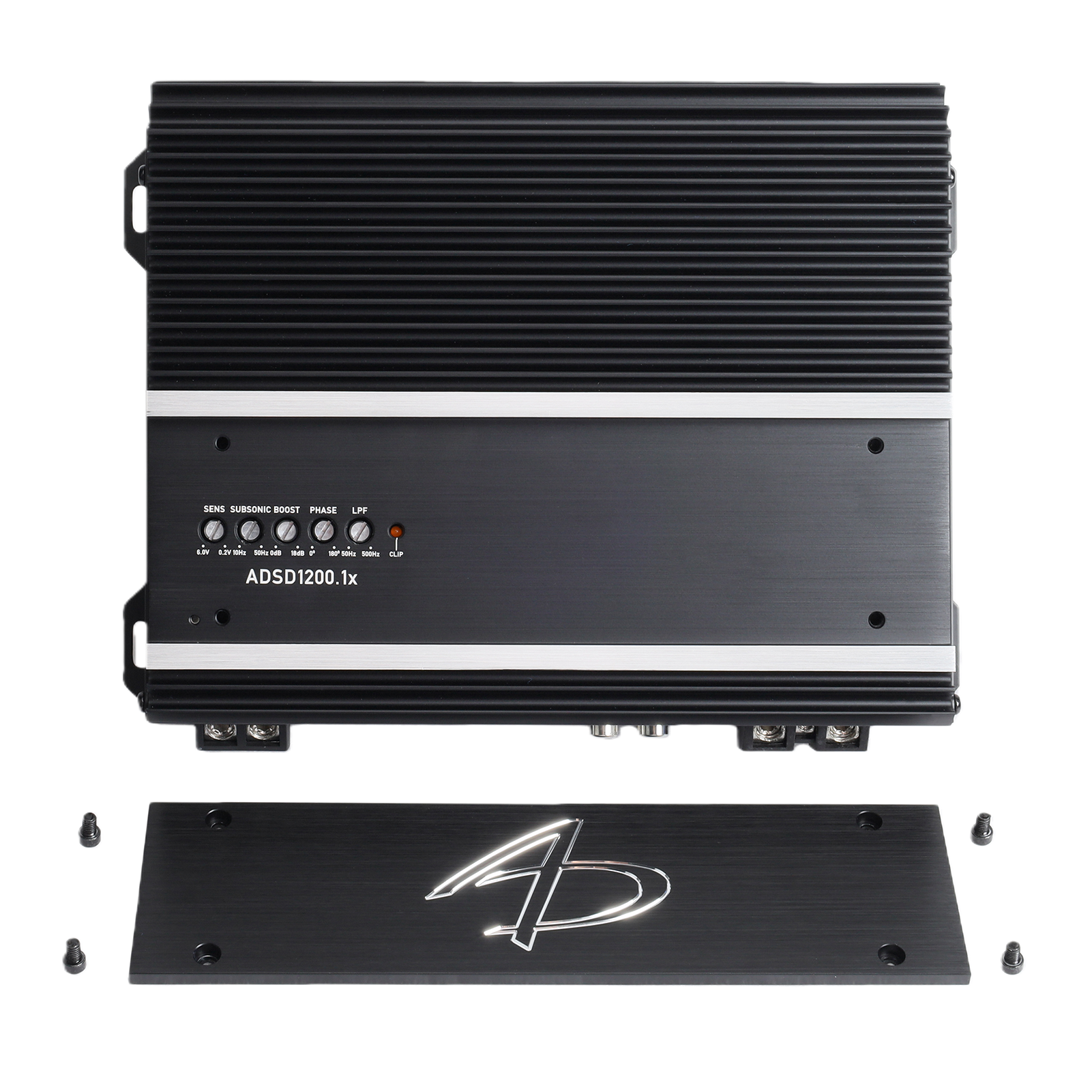

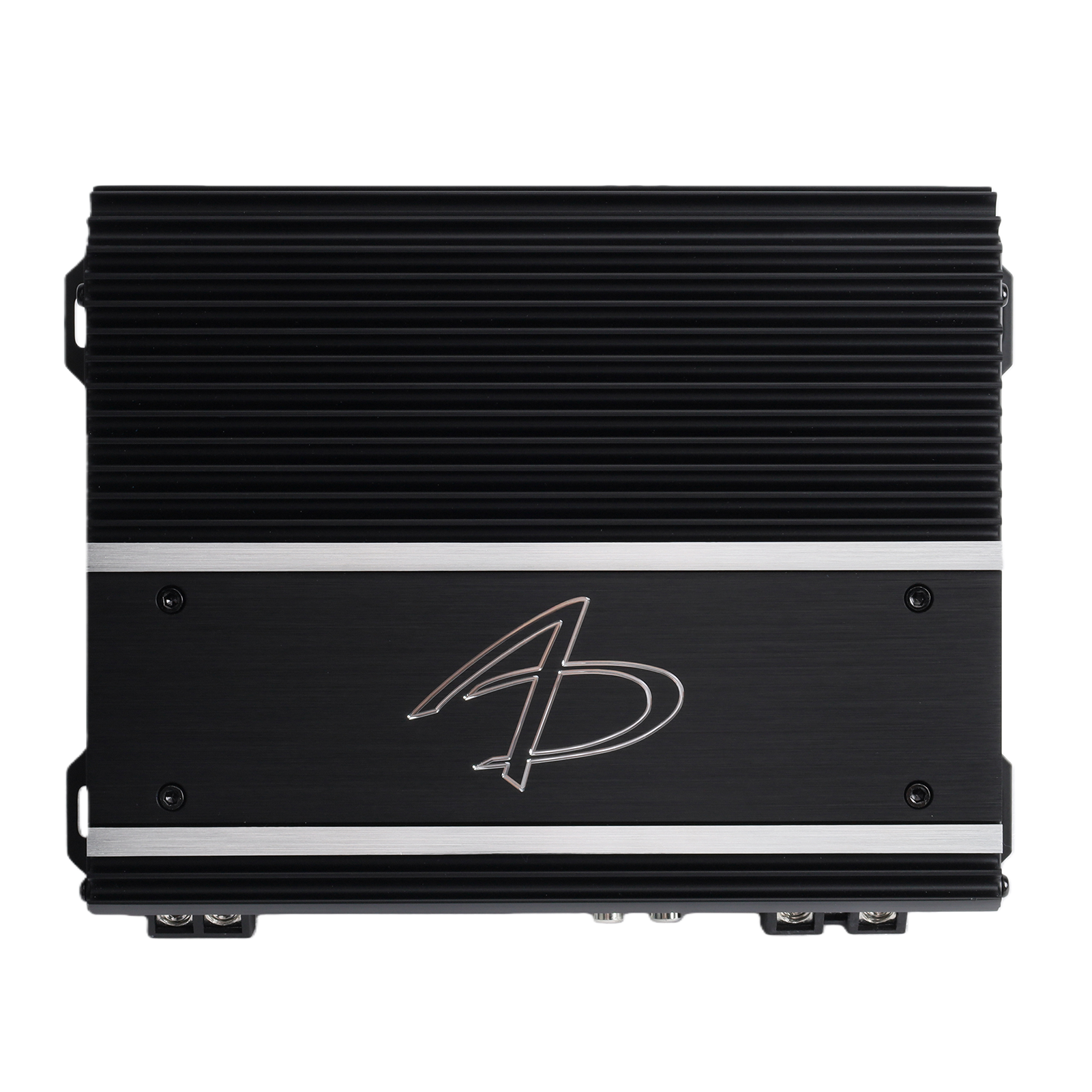

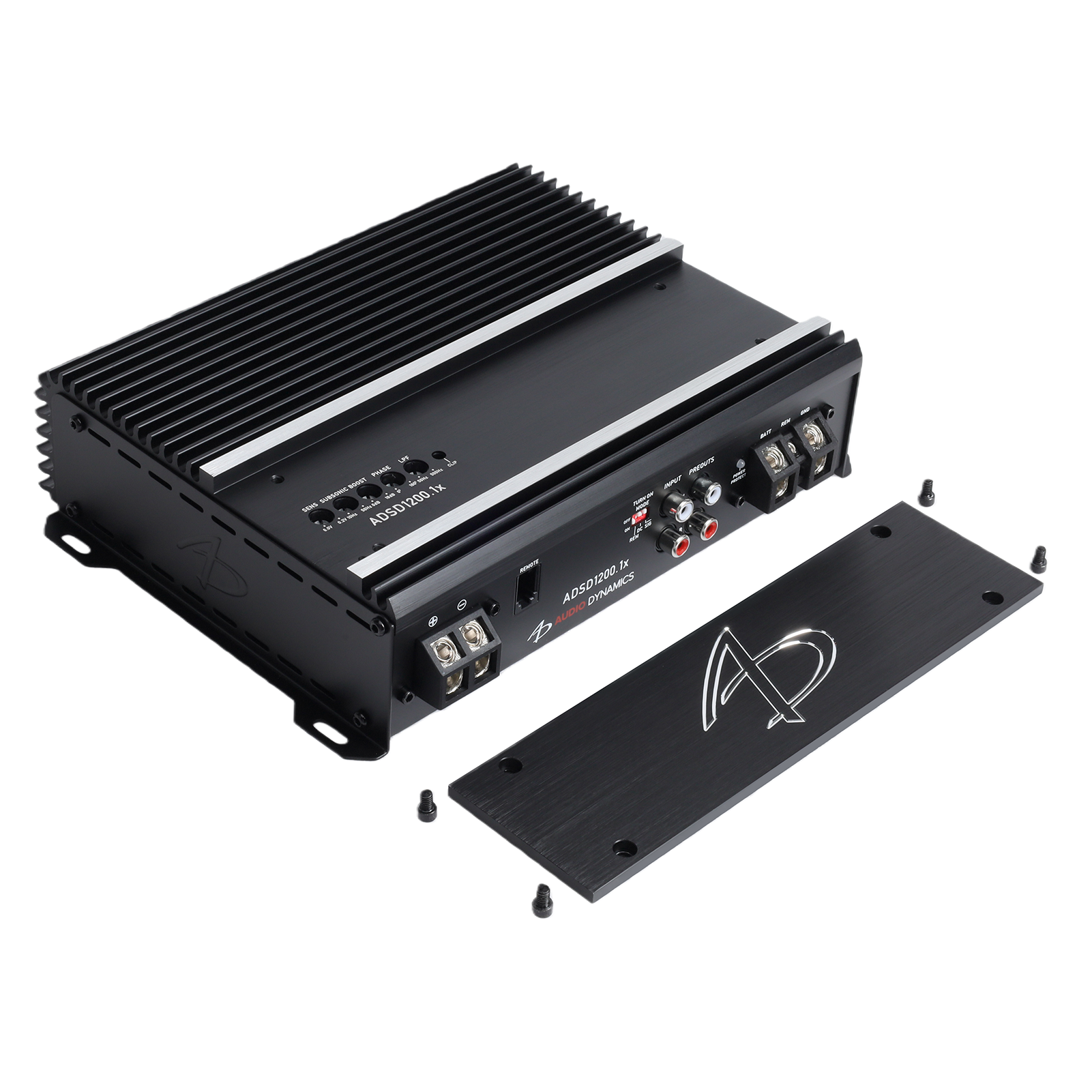

The top plate has also been increased from 1.3mm to 5mm thick. An additional top plate can be purchased in RED.
| Continuous Power | 500W x 1 @ 4 ohms |
| At 14.4V Supply Voltage | 800W x 1 @ 2 ohms |
| 1200W x 1 @ 1 ohm | |
| Frequency Response | 10Hz – 500Hz |
| Input Sensitivity | 200mV – 6V (low level), 500mV – 10V (high level into RCA connectors) |
| Fuse Ratings | 50A @ 4 ohms / 70A @ 2 ohms / 120A @ 1 ohm |
| Filter Modes | Subsonic and Low Pass |
| High Pass Filter @ 24dB/Oct | 10Hz – 50Hz |
 Linkwitz-Riley |
|
| Low Pass Filter @ 24dB/Oct | 50Hz – 500Hz |
| Linkwitz-Riley |
|
| Detented Filter Potentiometers | 41 Click-in-Place Frequencies |

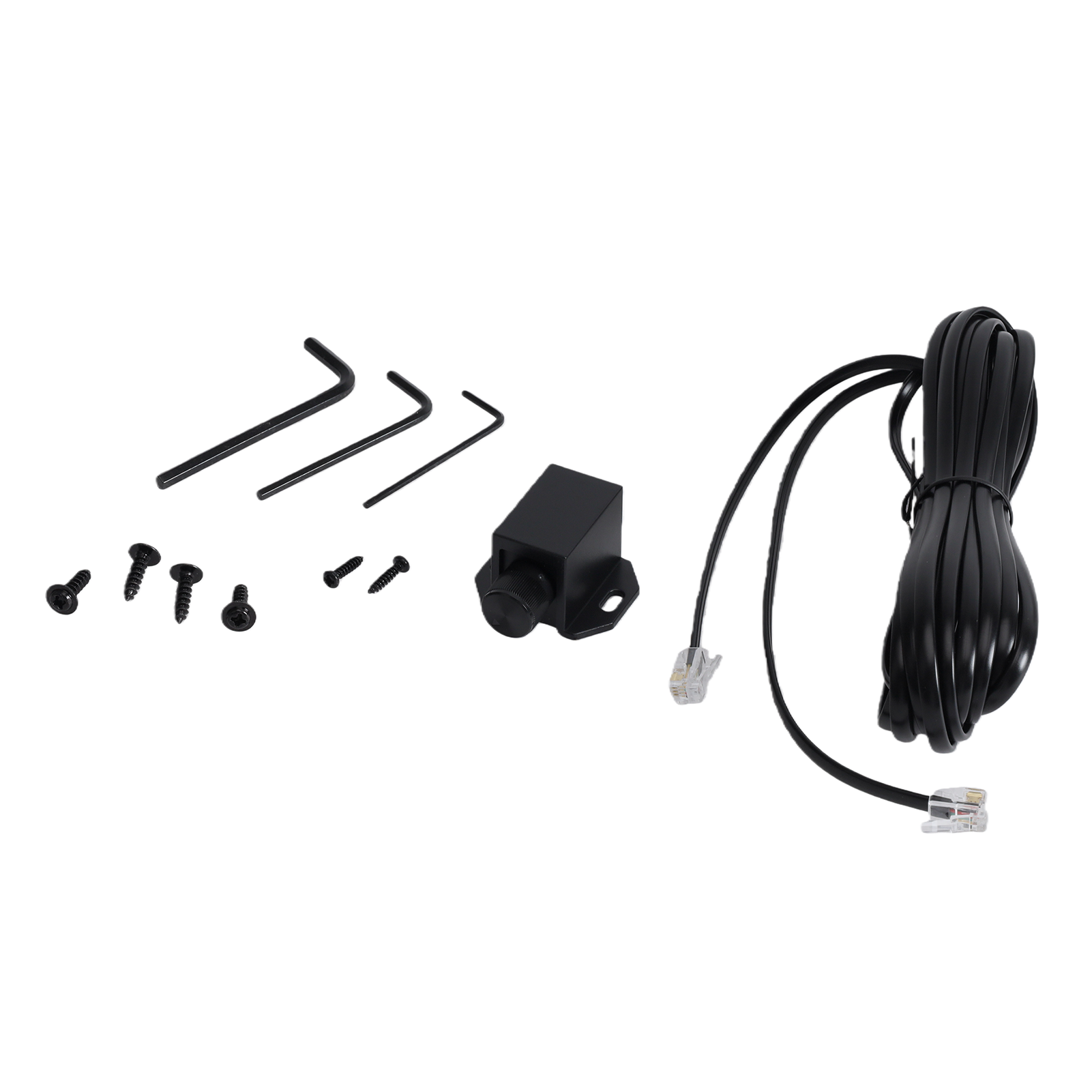

| Remote Level Control | Included with Clipping Indicator |
| Pass-Through Output | Yes |
| Height | 2.2 in / 56 mm |
| Depth | 7.33 in / 186.3 mm (includes terminals) |
| Width | 9.37 in / 238 mm (includes mounting feet) |
| Net Weight | 5.54 lb / 2.51 kg |
