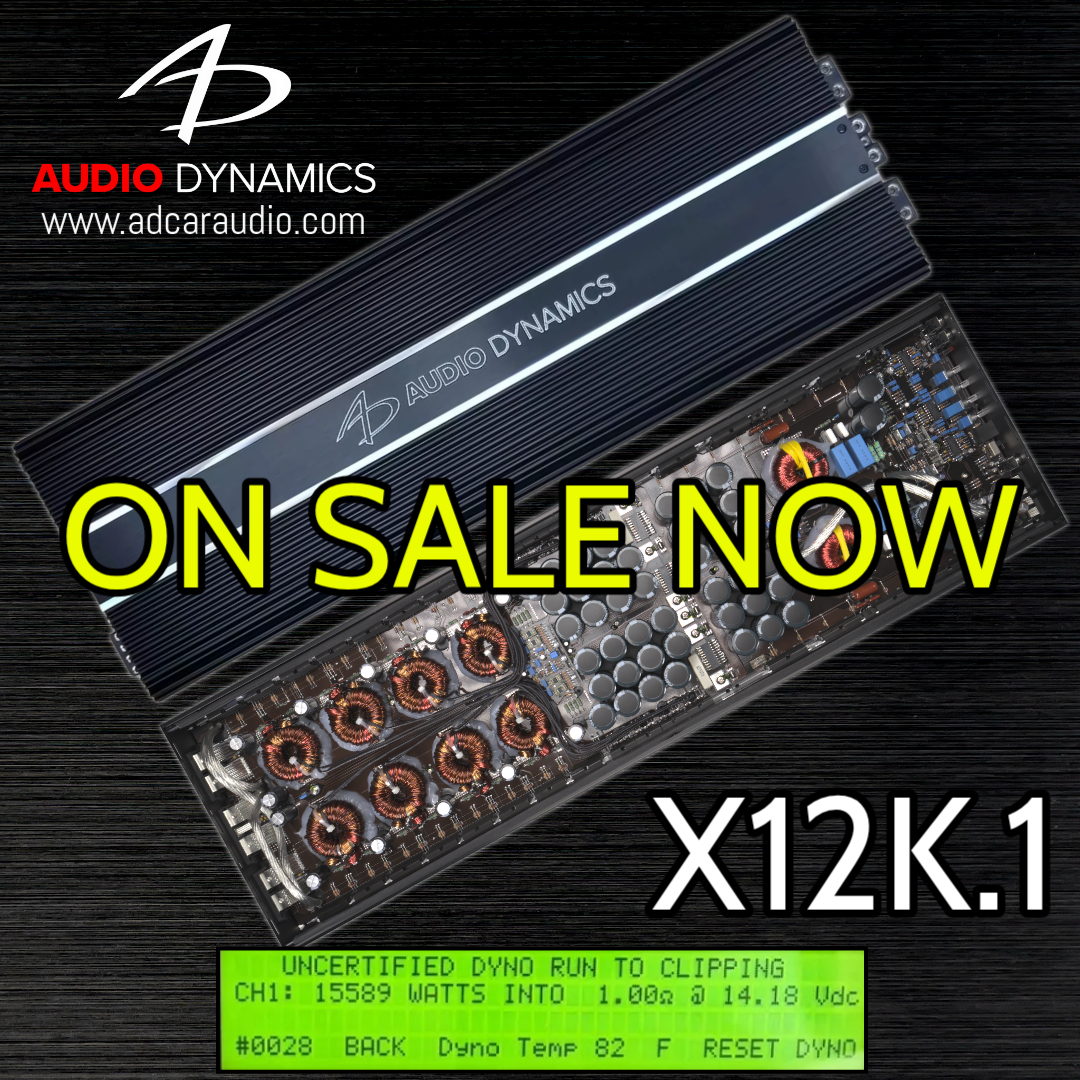

• 12,000 Watt Class D Mono Block
  • Upgraded with Larger Package Mosfets for Increased Avalanche Current
  • Upgraded with Lower ESR Capacitors
  • Upgraded Heatsink to Industry Leading Surface Area and Weight
  • Linkable Master / Slave Configurable
  • Dual MOS-FET PWM power supply
  • Click-in-Place Crossover Controls
  • Subsonic and Low Pass Filters
  • Variable Phase Control
  • Tiffany Style RCA Connectors
  • Remote Bass Control w/ Clip Indicator and Thermal / Voltage Display
  • Damping Factor >400
  • 87dB Signal to Noise Ratio
  • Engineered in U.S.A. and South Korea
  • Made in South Korea

Removable / Reversible Top Plate Available in Different Colors (See pics for colors and contact us directly @ 573-756-2049 to purchase)

Categories: , ,


Every X Series amplifier undergoes testing before it is packaged to confirm they work as intended. First, the crossover functions and a clean high output sine wave are confirmed to be within specification. Then, the amplifier is wired to a resistor bank and driven with a very high signal to drive the amp into thermal protection. The amp is cycled back on and is again tested for a clean high output sine wave.

 Continuous Power 4700W x 1 @ 4 ohms
 At 14.4V Supply Voltage 7200W x 1 @ 2 ohms
12,000W x 1 @ 1 ohm
 Frequency Response 13Hz – 263Hz
 Input Sensitivity 0.4V to 6V
 Fuse Ratings 450A @ 4 ohms / 700A @ 2 ohms / 1100A @ 1 ohm
 Filter Modes Subsonic and Low Pass
 Subsonic Filter @ 24dB/Oct 10Hz – 50Hz
 Low Pass Filter @ 24dB/Oct 35Hz – 250Hz
 Detented Filter Potentiometers 41 Click-in-Place Frequencies
 Remote Level Control w/ Clip Indicator / Thermal / Voltage  Included
 Pass-Through Output Yes
 Height 3.12 in / 79.3 mm
 Width 10.59 in / 269 mm
 Length (Heat Sink) 31.49 in / 800 mm
 Net Weight 48 lb /21.77  kg

Amp Dyno Numbers

Amp Dyno Numbers

Amp Dyno Numbers
