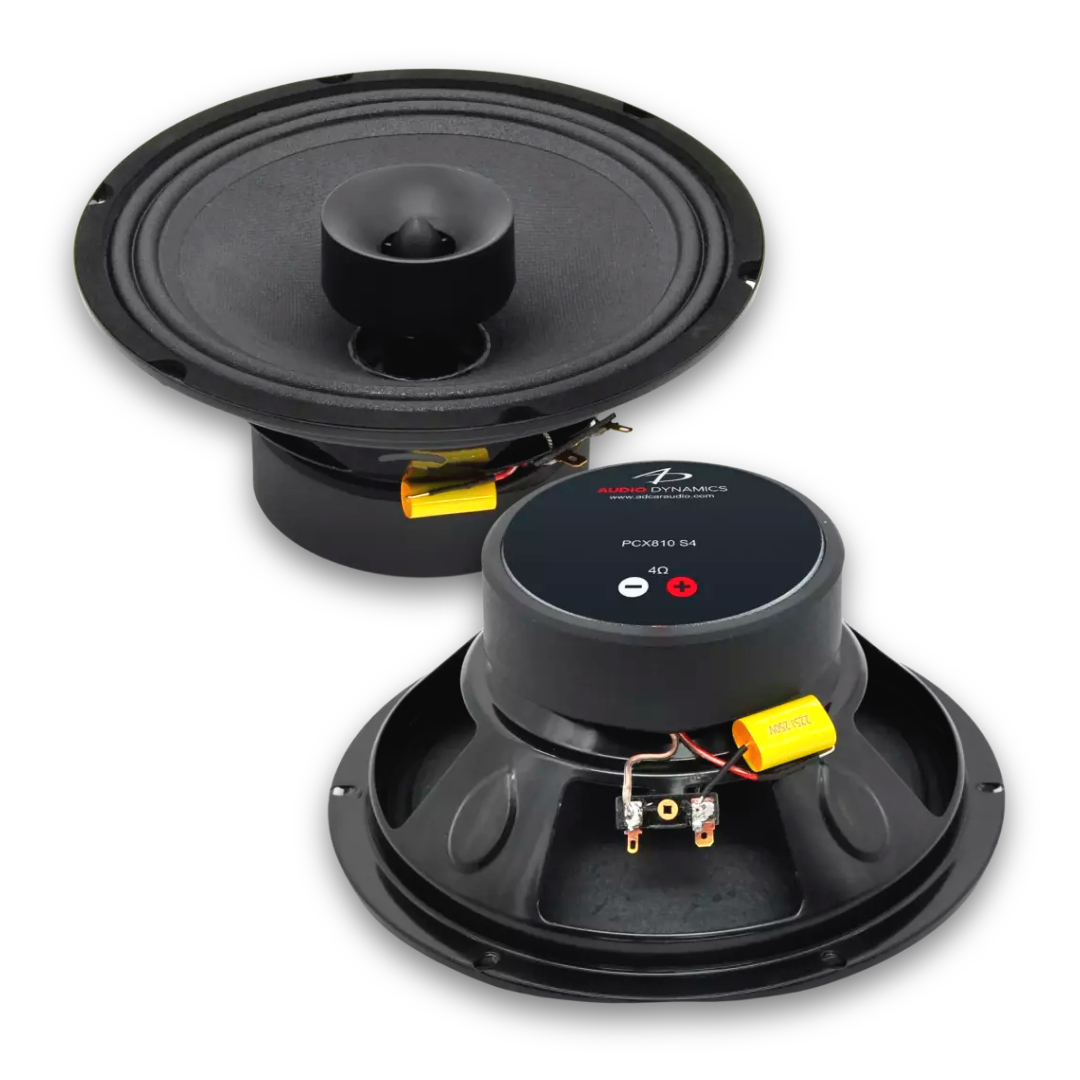

1000 Series 8″ – 4 Ohm Pair – PCX810S4

$179.00



  • 4 Ohm 8″ (205 mm) Steel frame midrange coaxial
  • Paper cone with cloth edge
  • 1 1/2″ (38 mm) midrange voice coil
  • 22oz Y35 high energy motor
  • Bullet tweeter
  • Gold plated terminals
  • Polypropylene capacitor on tweeter
  • Grills included
  • 150 Watts RMS power handling*
  • Sold in Pairs

All power ratings are figured using an electronic high pass crossover with a minimum crossover point of 110Hz at 24dB/Octave, 130Hz at 18dB/Octave, or 150Hz at 12dB/Octave.

SKU: ADPCX810S4 Categories: ,

Description

Fs	 Hz
Qms
Vas	 l
Cms	 mm/N
Mms	 g
Rms	 kg/s
Dia	 mm
Sd	 cm²

Qes
Re	 Ω
Le	 mH
Z	 Ω
Bl	 Tm
Bl²/Re	 N²/W

Qts
no	 %
SPL	 dB




Frame Outer Diameter	8 1/2"    (215mm)
Grille Outer Diameter	" (mm)
Motor Outer Diameter	3 15/16"  (100mm)
Tweeter Protrusion	  1/4"    (7mm)
Grille Protrusion	  " (mm)
Mounting Hole Diameter	7 1/4"    (183mm)
Mounting Depth		3 1/2"    (88mm)
