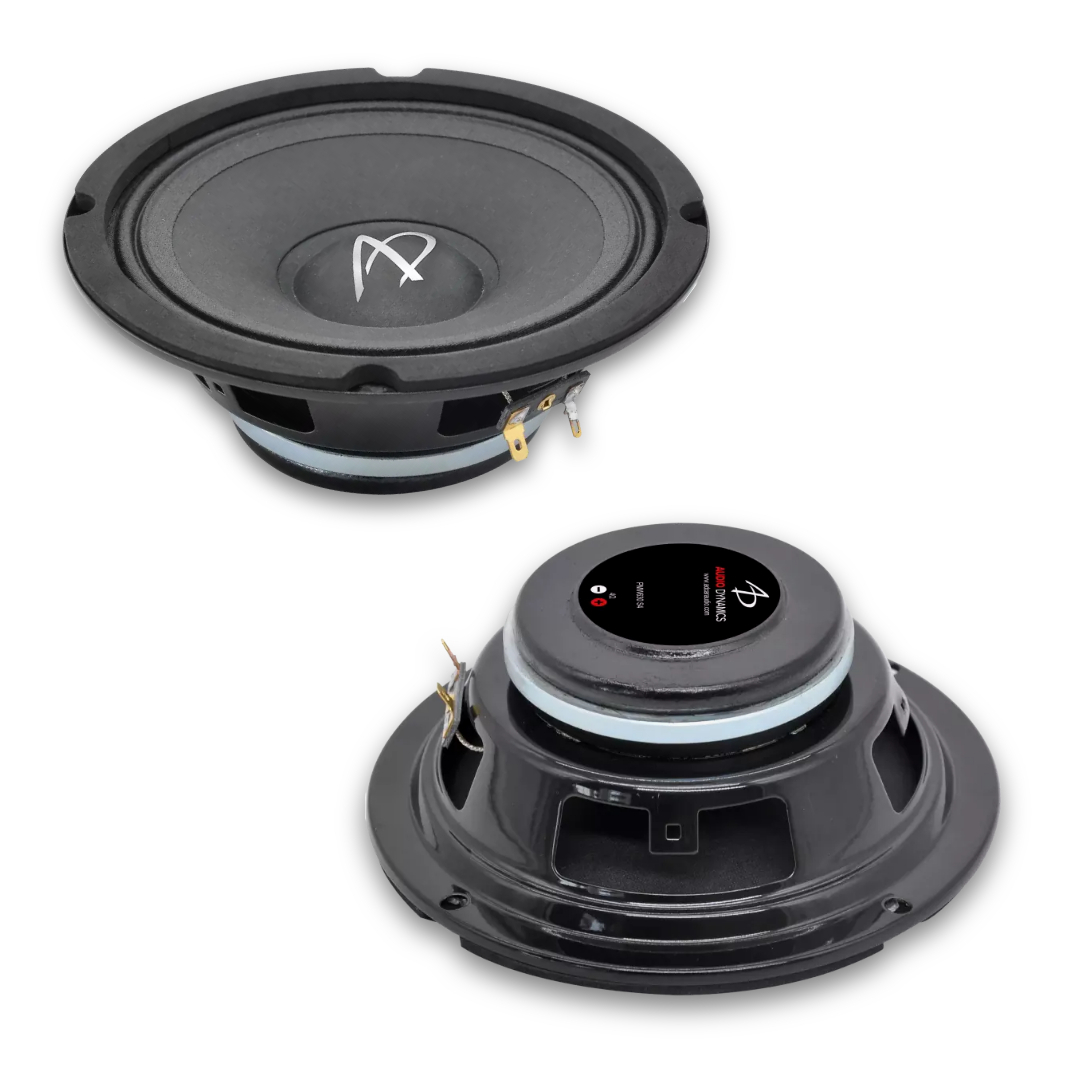

PMW630 S2/S4 - 3000 Series 6.5" Pro Midrange
PMW630 S2/S4 - 3000 Series 6.5" Pro Midrange - Image 2
PMW630 S2/S4 - 3000 Series 6.5" Pro Midrange - Image 3
PMW630 S2/S4 - 3000 Series 6.5" Pro Midrange - Image 4

PMW630 S2/S4 – 3000 Series 6.5″ Pro Midrange

$299.00



  • 6 ½” (165 mm) Pro Midrange
  • Thick Stamped Steel Basket
  • Treated Paper Cone
  • Lightweight Cloth Surround
  • 1.5″ (38 mm) High Temperature Midrange Voice Coil
  • High Energy N38 Neodymium Motor
  • 200 Watts RMS power handling*
  • 96dB Sensitivity @ 1W/1m
  • Available in Single 2 ohm or Single 4 ohm coil configuration

All power ratings are figured using an electronic high pass crossover with a minimum crossover point of 150Hz at 24dB/Octave, 200Hz at 18dB/Octave, or 250Hz at 12dB/Octave.

Sold in pairs

SKU: N/A Categories: ,

Description

Fs	 Hz
Qms
Vas	 l
Cms	 mm/N
Mms	 g
Rms	 kg/s
Dia	 mm
Sd	 cm²
Qes
Re	 Ω
Le	 mH
Z	 Ω
Bl	 Tm
Bl²/Re	 N²/W
Qts
no	 %
SPL	 dB


Frame Outer Diameter	6 1/2"   (165mm)
Motor Outer Diameter	3 9/16"  (90mm)
Mounting Hole Diameter	5 10/16" (143mm)
Mounting Depth		2 1/4"   (57mm)

Additional information

Choose Coil Configuration

Single 2 ohm, Single 4 ohm
