Name: PCX630 S2/S4 - 3000 Series 6.5" Pro 2-way
SKU: 4522
Price: 349.00 USD
Availability: InStock

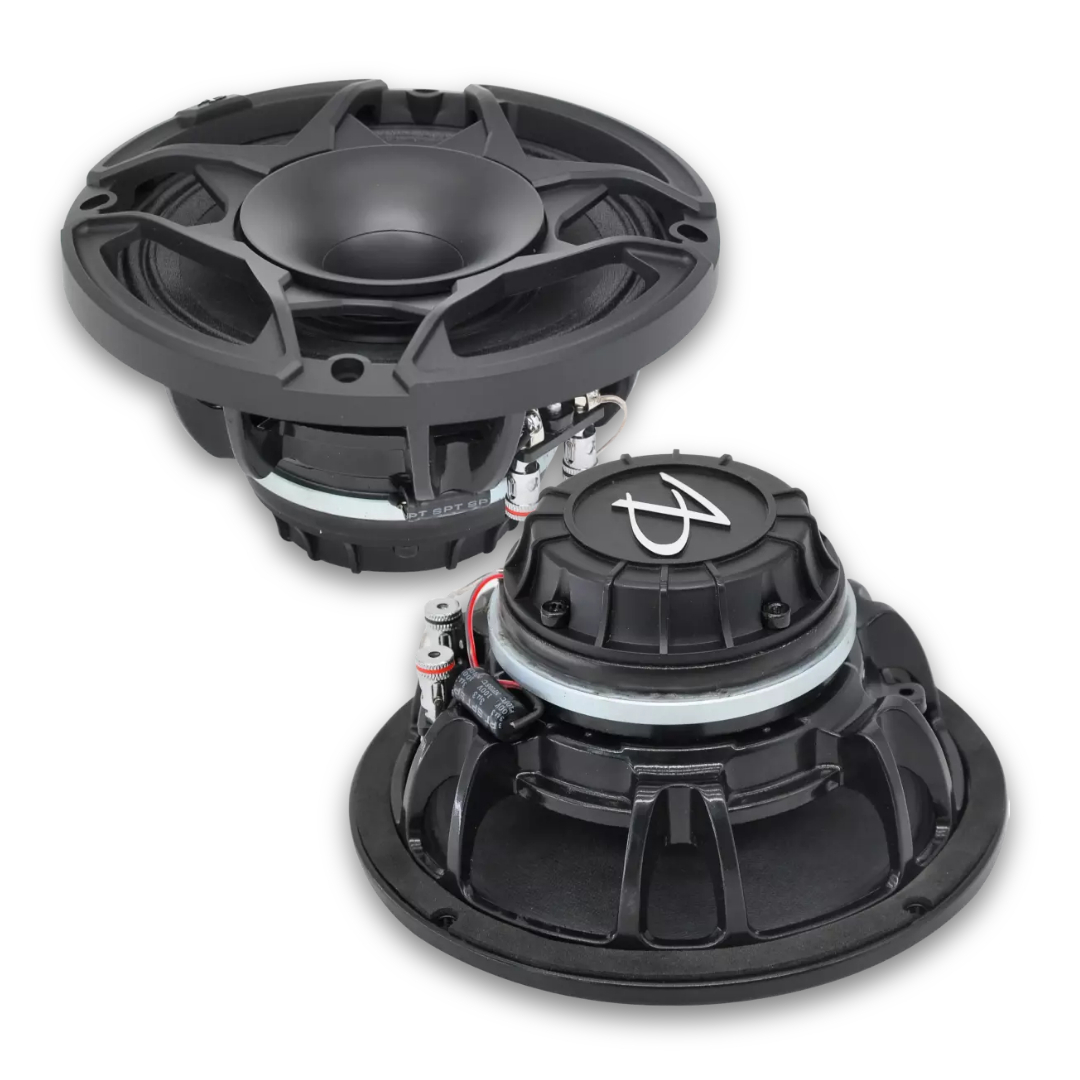

PCX630 S2/S4 – 3000 Series 6.5″ Pro 2-way

$349.00

6 ½” (173.5 mm) Pro Coaxial
Die Cast Aluminum Basket
Treated Paper Cone
Lightweight Cloth Surround
Waterproof Treated Cone Spider (covers horn gap)
1.5″ (38 mm) High Temperature Midrange Voice Coil
High Energy N38 Neodymium Motor
Black Composite Grills Included
1″ (25mm) High Temperature Tweeter Voice Coil
Built-in Tweeter Crossover
200 Watts RMS power handling*
96dB Midrange Sensitivity @ 1W/1m
104dB Tweeter Sensitivity @ 1W/1m
Available in Single 2 ohm or Single 4 ohm coil configuration

All power ratings are figured using an electronic high pass crossover with a minimum crossover point of 150Hz at 24dB/Octave, 200Hz at 18dB/Octave, or 250Hz at 12dB/Octave.

Sold in Pairs

Description

Single 2 ohm
Fs 161.477 Hz
Qms 0.601
Vas 3.038 l
Cms 0.111 mm/N
Mms 8.773 g
Rms 2.611 kg/s
Dia 132.9 mm
Sd 138.8 cm²
Qes 0.601
Re 1.8 Ω
Le 0.035 mH
Bl 5.164 Tm
Qts 0.511
no 2.059 %
SPL 95.2 dB

Single 4 ohm
Fs 158.735 Hz
Qms 8.21
Vas 3.825 l
Cms 0.14 mm/N
Mms 7.204 g
Rms 0.872 kg/s
Dia 133 mm
Sd 138.9 cm²
Qes 0.565
Re 2.80 Ω
Le mH
Bl 5.969 Tm
Qts 0.528
no 2.620 %
SPL 96.2 dB

Frame Outer Diameter	6 13/16"   (173.5mm)
Motor Outer Diameter	3 9/16"   (90mm)
Tweeter Protrusion	 13/16"    (20.32mm)
Mounting Hole Diameter	5 11/16"   (145mm)
Mounting Depth		3  5/32"  (80mm)
