Description
Fs Hz Qms Vas l Cms mm/N Mms g Rms kg/s Dia mm Sd cm² Qes Re Ω Le mH Z Ω Bl Tm Bl²/Re N²/W Qts no % SPL dB Motor Outer Diameter 3 9/16" (90mm) Tweeter Protrusion 15/16" (23mm) Mounting Depth 3 3/4" (95mm)

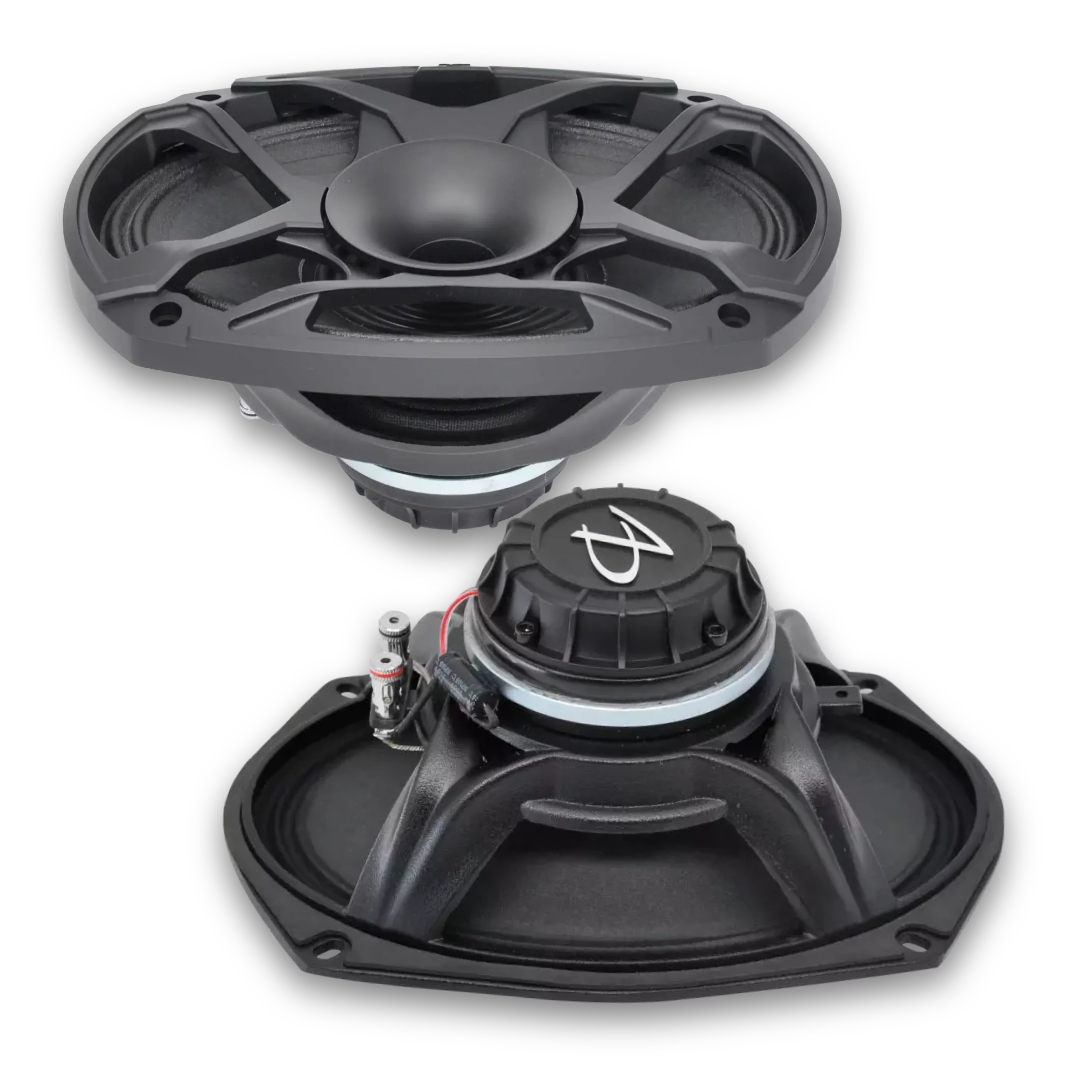

PCX6930 S2/S4 – 3000 Series 6″x 9″ Pro 2-way
$369.00
- 6″ x 9″ Pro Coaxial
- Die Cast Aluminum Basket
- Treated Paper Cone
- Lightweight Cloth Surround
- Waterproof Treated Cone Spider (covers horn gap)
- 1.5″ (38 mm) High Temperature Midrange Voice Coil
- High Energy N38 Neodymium Motor
- Black Composite Grills Included
- 1″ (25mm) High Temperature Tweeter Voice Coil
- Built-in Tweeter Crossover
- 200 Watts RMS power handling*
- 96dB Midrange Sensitivity @ 1W/1m
- 104dB Tweeter Sensitivity @ 1W/1m
- Available in Single 2 ohm or Single 4 ohm coil configuration
All power ratings are figured using an electronic high pass crossover with a minimum crossover point of 150Hz at 24dB/Octave, 200Hz at 18dB/Octave, or 250Hz at 12dB/Octave.
Sold in pairs
Additional information
| Choose Coil Configuration | Single 2 ohm, Single 4 ohm |
|---|
