Description

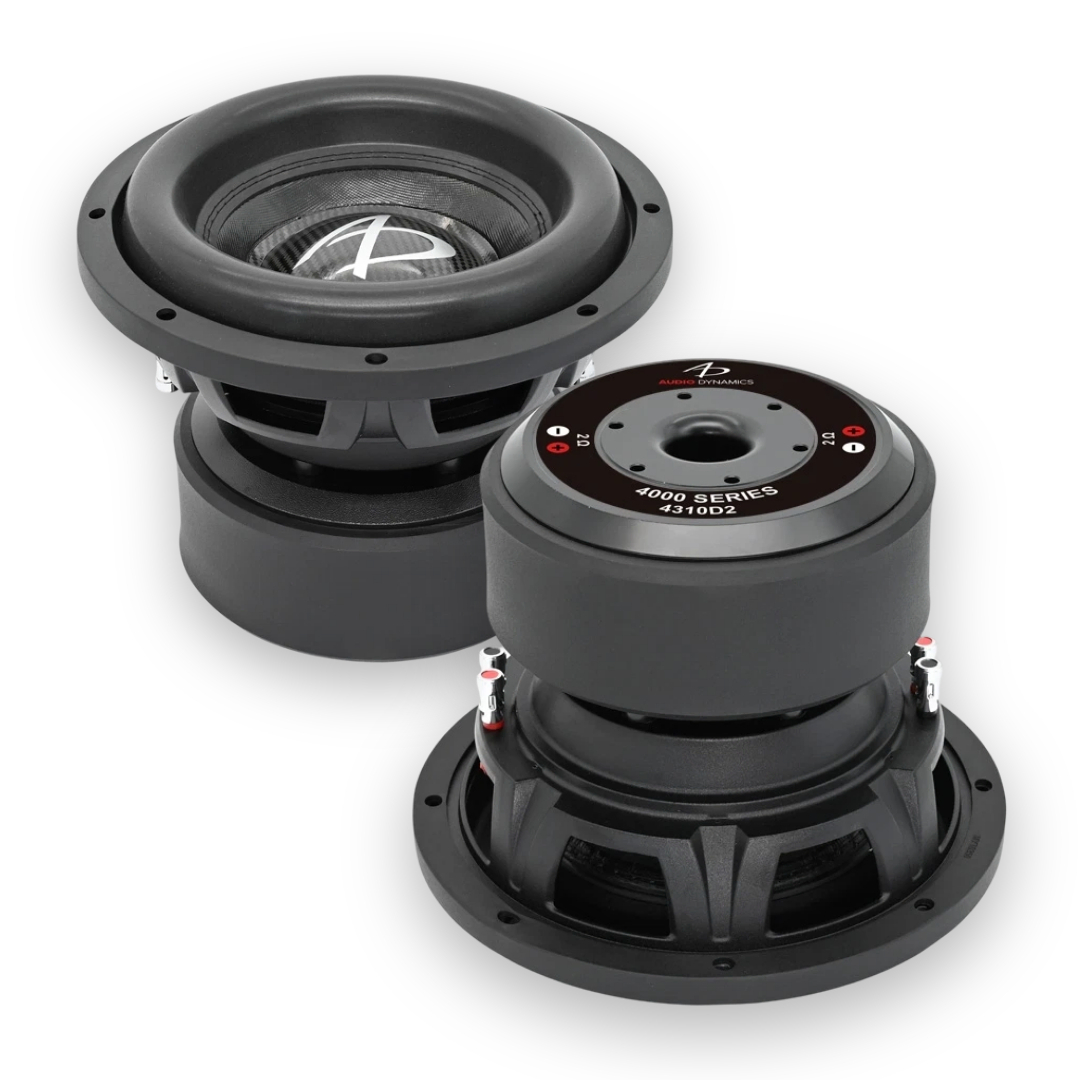

The 4000 series 10 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions.
Dual 2 ohm
Fs 38.63 Hz
Qms 7.724
Vas 6.819 liters
Cms 0.047 mm/N
Mms 362 g
Rms 11.35 kg/s
Dia 202.4 mm
Sd 319.6 sq cm
Qes 0.571
Re 4.286 ohms
Le 5.867 mH
Z 62.29 ohms
BL 25.68 Tm
BL^2/Re
Qts 0.532
no 0.0664 %
SPL 80.37 dB
EBP 67.65
Dual 4 ohm
Fs 42.9 Hz
Qms 7.331
Vas 5.371 liters
Cms 0.037 mm/N
Mms 373.3 g
Rms 13.73 kg/s
Dia 202.5 mm
Sd 322.1 sq cm
Qes 0.7507
Re 7.12 ohms
Le 7.468 mH
Z 76.65 ohms
BL 30.89 Tm
Qts 0.681
no 0.05386 %
SPL 79.41 dB
EBP 57.15
Nominal Diameter 10in
Overall Diameter 10.79in / 274mm
Mounting Hole Diameter 9.25in / 235mm
Bolt Hole Circle Diameter
Motor Outer Diameter 7.72in / 196mm
Mounting Depth 7.28in / 185mm
Required Pole Vent Clearance
Driver Displacement 0.108 cu ft / 3.07 l
Not Recommended for Sealed
