Description
The 5000 series 15 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions.
Fs 32.97 Hz
Qms 8.94
Vas 32.93 liters
Cms 0.039 mm/N
Mms 591.3 g
Rms 13.845 kg/s
Dia 313.400 mm
Sd 771.055 sq cm
Qes 0.979
Re 4.546 ohms
Le 4.602 mH
Z 5.455 ohms
BL 23.86 Tm
BL^2/Re 125.231 N^2/W
Qts 0.882
no 0.116 %
SPL 82.802 dB
EBP 33.691
XMax 23.5mm
Nominal Diameter 15in
Overall Diameter 15.5in / 395mm
Mounting Hole Diameter 13.77in / 350mm
Bolt Hole Circle Diameter
Motor Outer Diameter 7.87in / 200mm
Mounting Depth 10in / 255mm
Required Pole Vent Clearance
Driver Displacement 0.196 cu ft / 5.537 l
Minimum Sealed Volume N/A
Minimum Vented Volume cu ft / l net*
* Tune for desired response

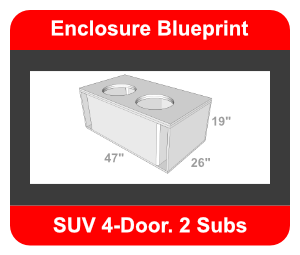

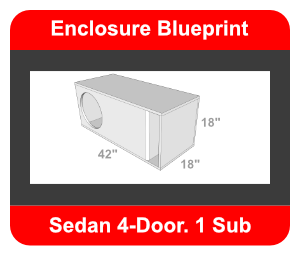

Vehicle body style specific enclosure designs coming soon
The above designs have been engineered for a particular vehicle body style. The cabin acoustics of a sedan, hatchback and an SUV were part of the formula to ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for one off custom designs.
