Description

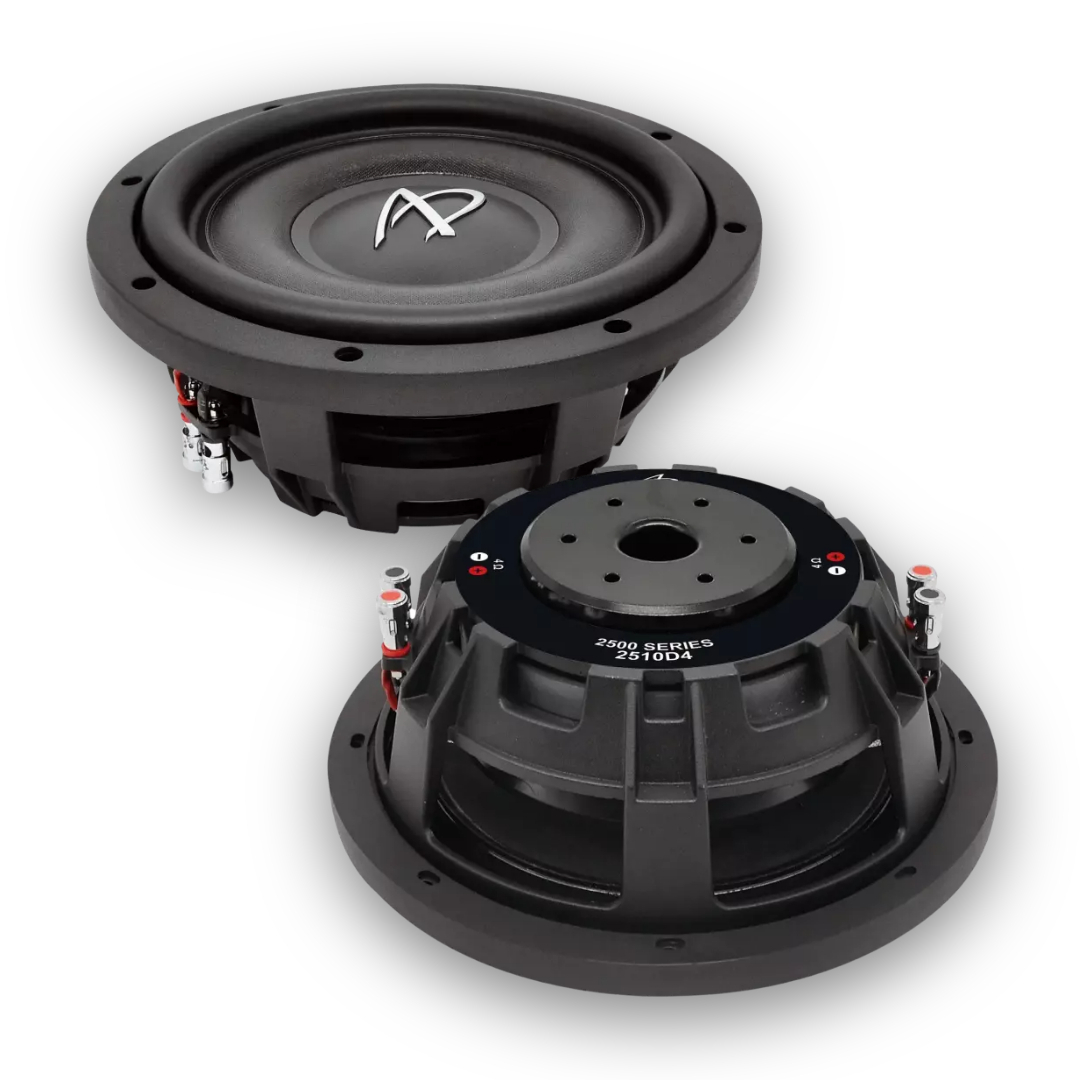

The 2500 series 10 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions.
Dual 2 ohm
Fs 38.66 Hz
Qms 4.971
Vas 17.22 liters
Cms 0.102 mm/N
Mms 165.5 g
Rms 8.119 kg/s
Dia 209.5 mm
Sd 344.8 sq cm
Qes 0.6583
Re 3.646 ohms
Le 3.114 mH
Z 31.18 ohms
BL 23.84 Tm
BL^2/Re N^2/W
Qts 0.5813
no %
SPL 83.8 dB
EBP
Dual 4 ohm
Fs 37.04 Hz
Qms 5.487
Vas 14.6 liters
Cms 0.083 mm/N
Mms 222.3 g
Rms 9.429 kg/s
Dia 212.2 mm
Sd 351.8 sq cm
Qes 0.8981
Re 7.91 ohms
Le mH
Z ohms
BL 21.35 Tm
BL^2/Re N^2/W
Qts 0.7718
no %
SPL 81.06 dB
EBP
Xmax 10mm (one-way linear excursion)
Nominal Diameter 10in
Overall Diameter 10.845in / 275mm
Mounting Hole Diameter 9.33in / 237mm
Bolt Hole Circle Diameter
Motor Outer Diameter 6.29in / 160mm
Mounting Depth 3.862in / 98mm
Required Pole Vent Clearance
Driver Displacement 0.049 cu ft / 1.392 l
Sealed Volume 0.50 – 0.60 cu.ft.
Vented Volume 0.60 – 1.25 cu.ft. net
* Tune for desired response
